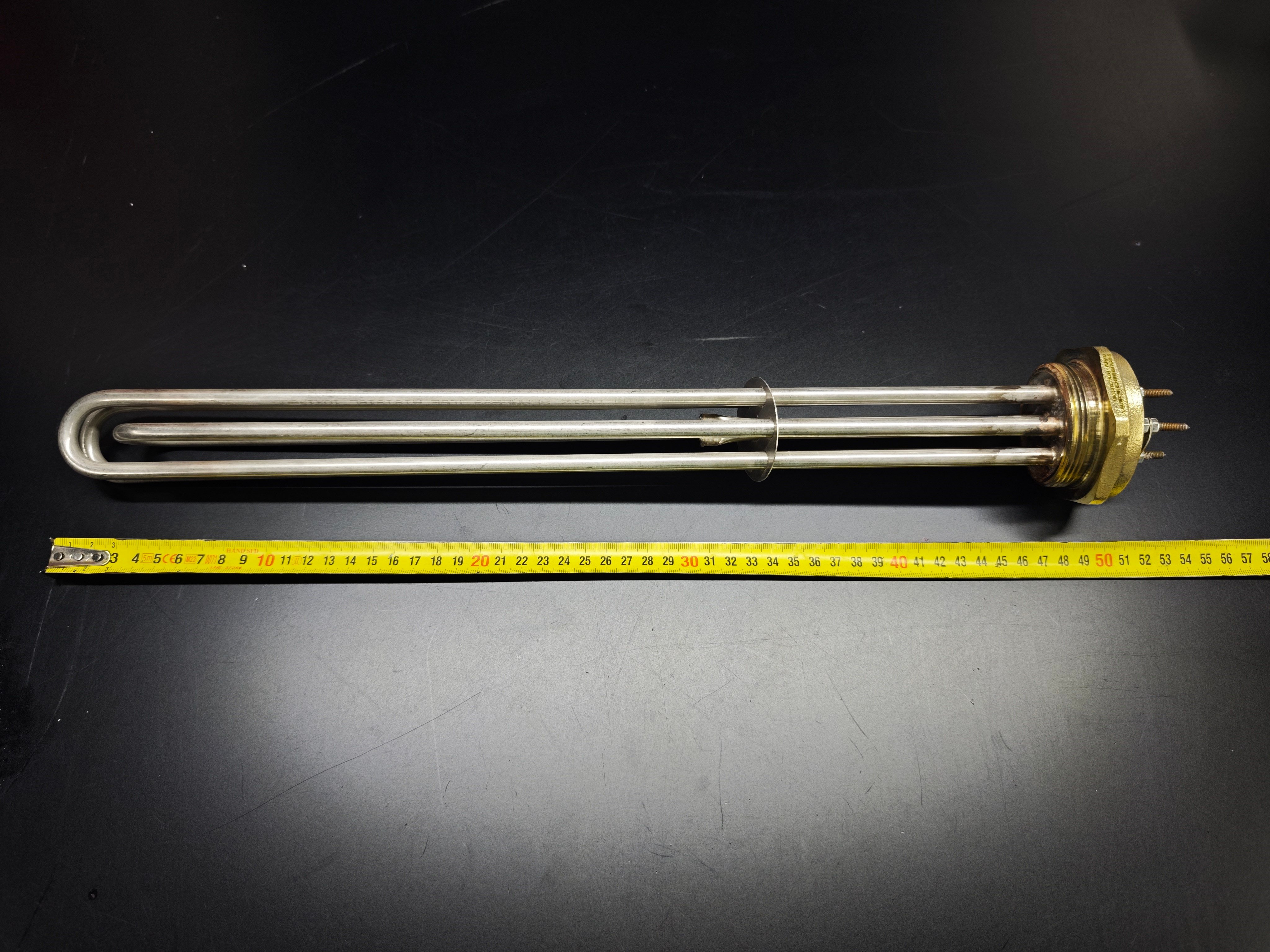

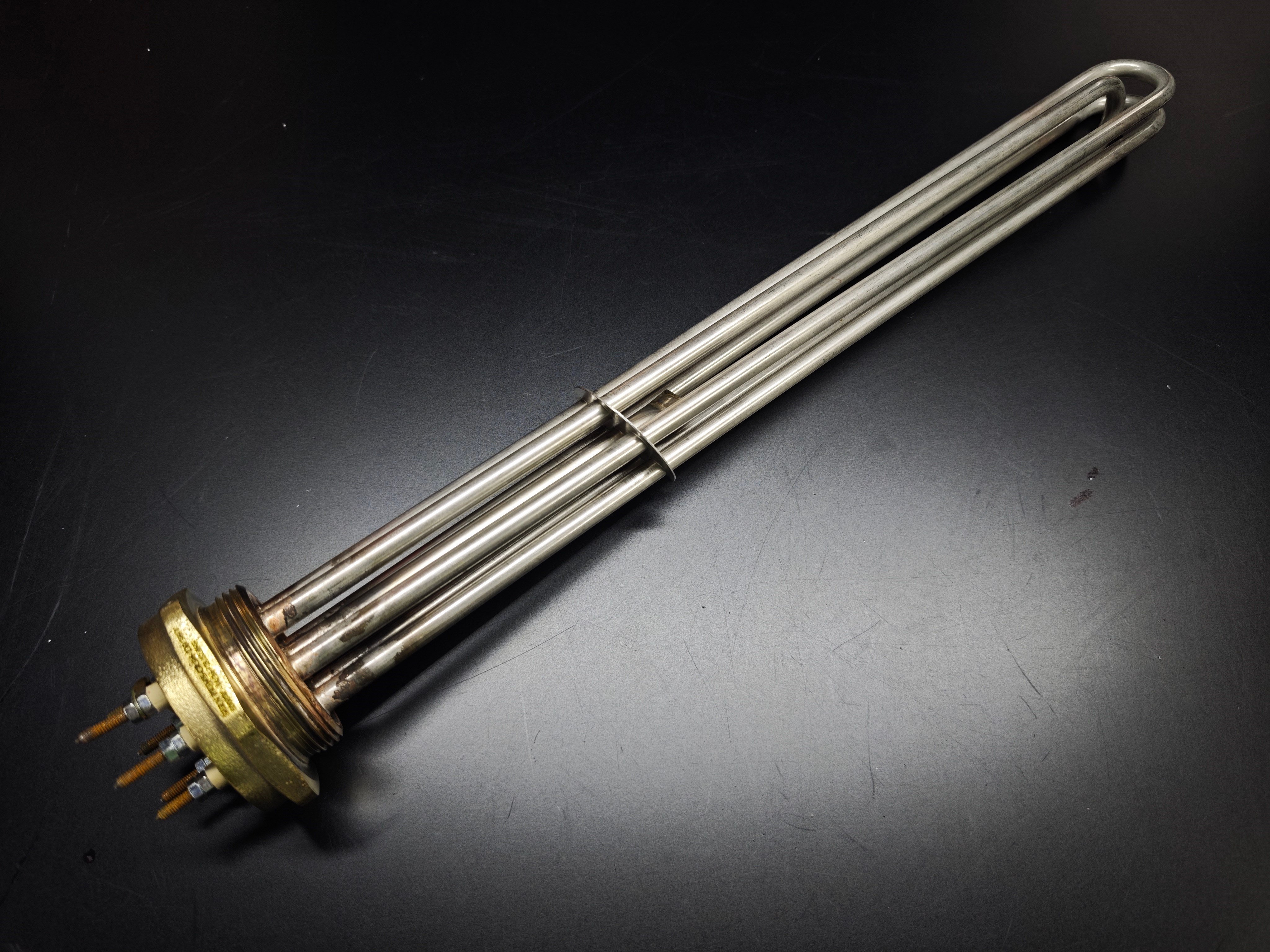

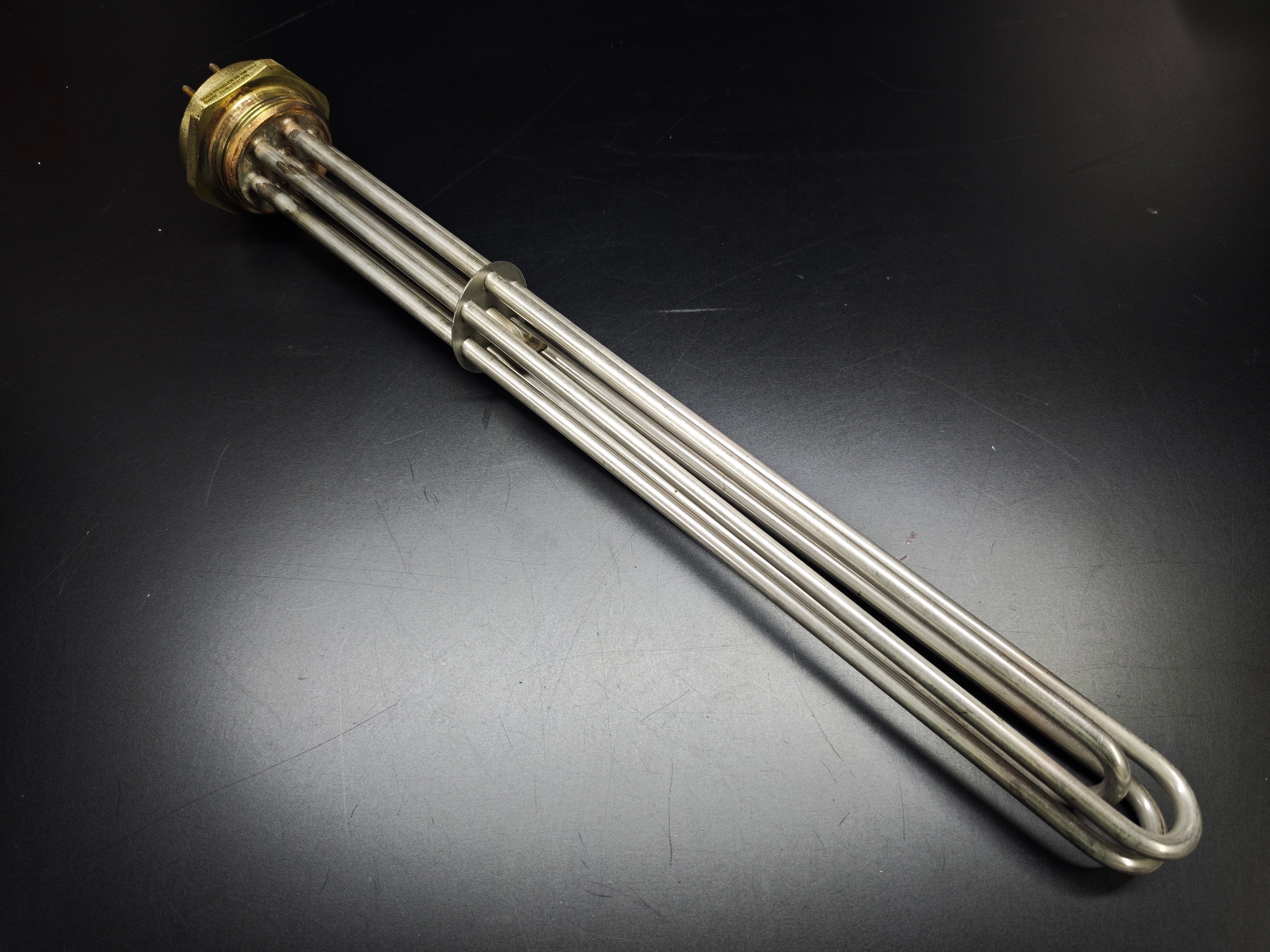

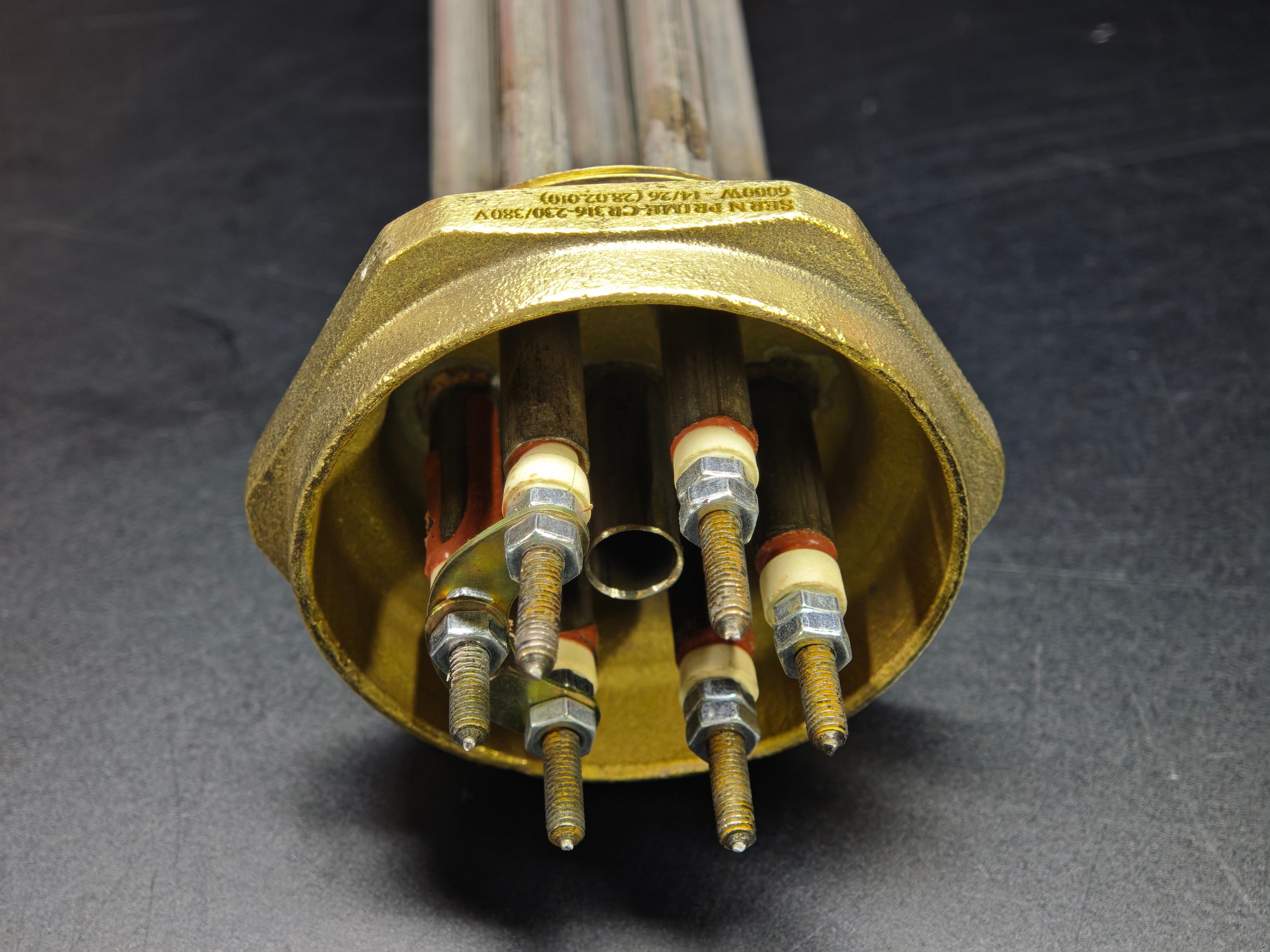

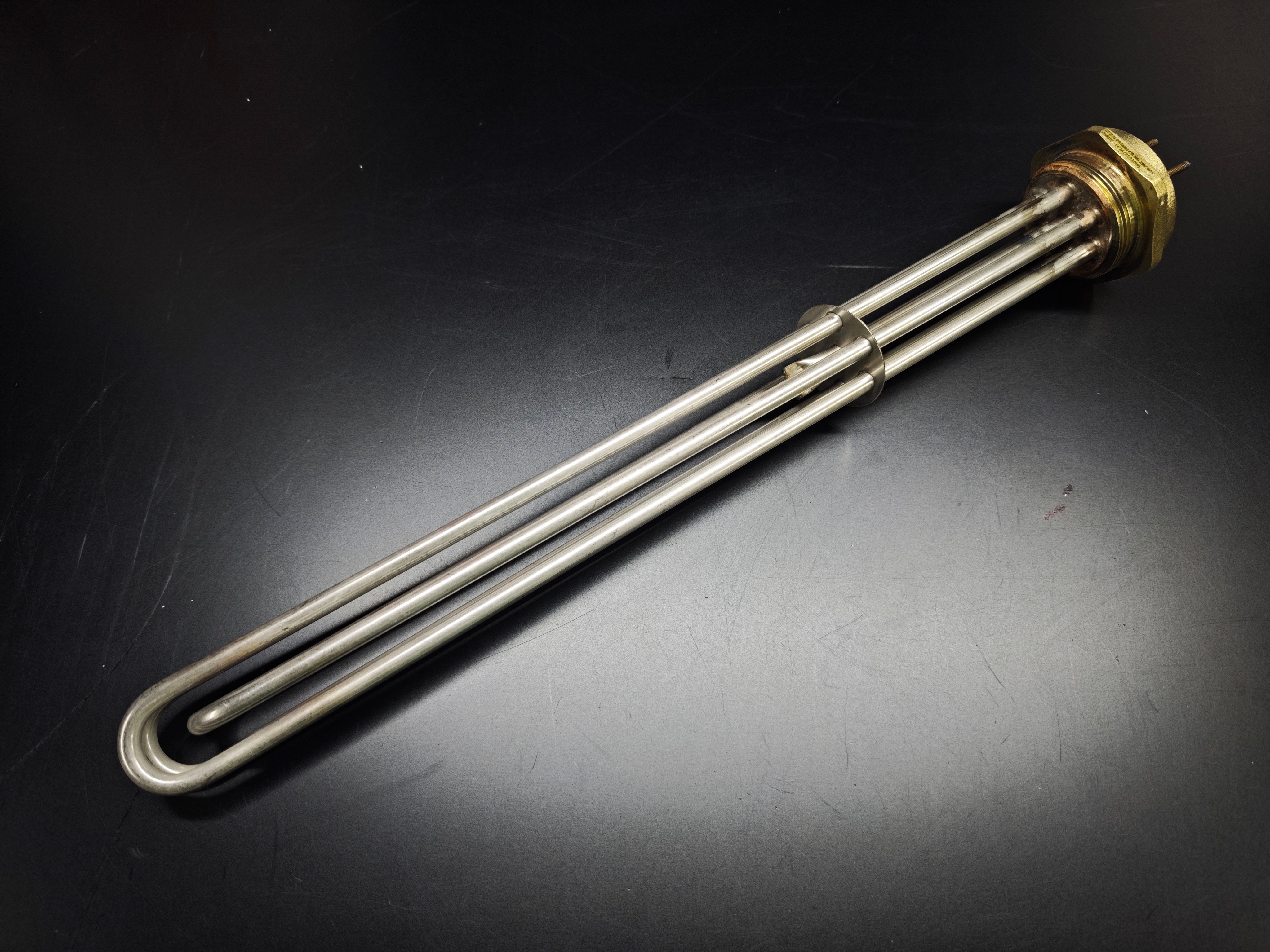

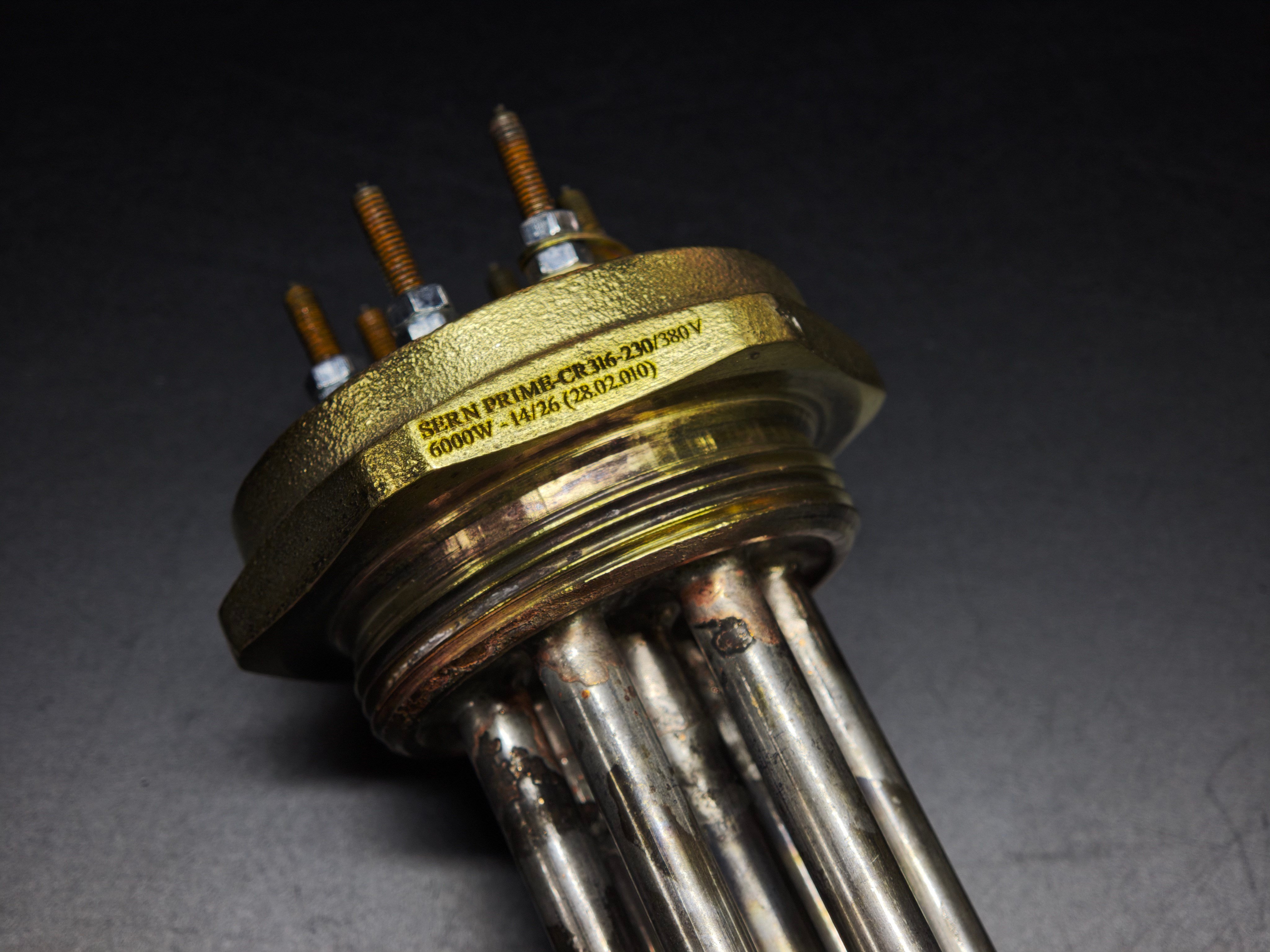

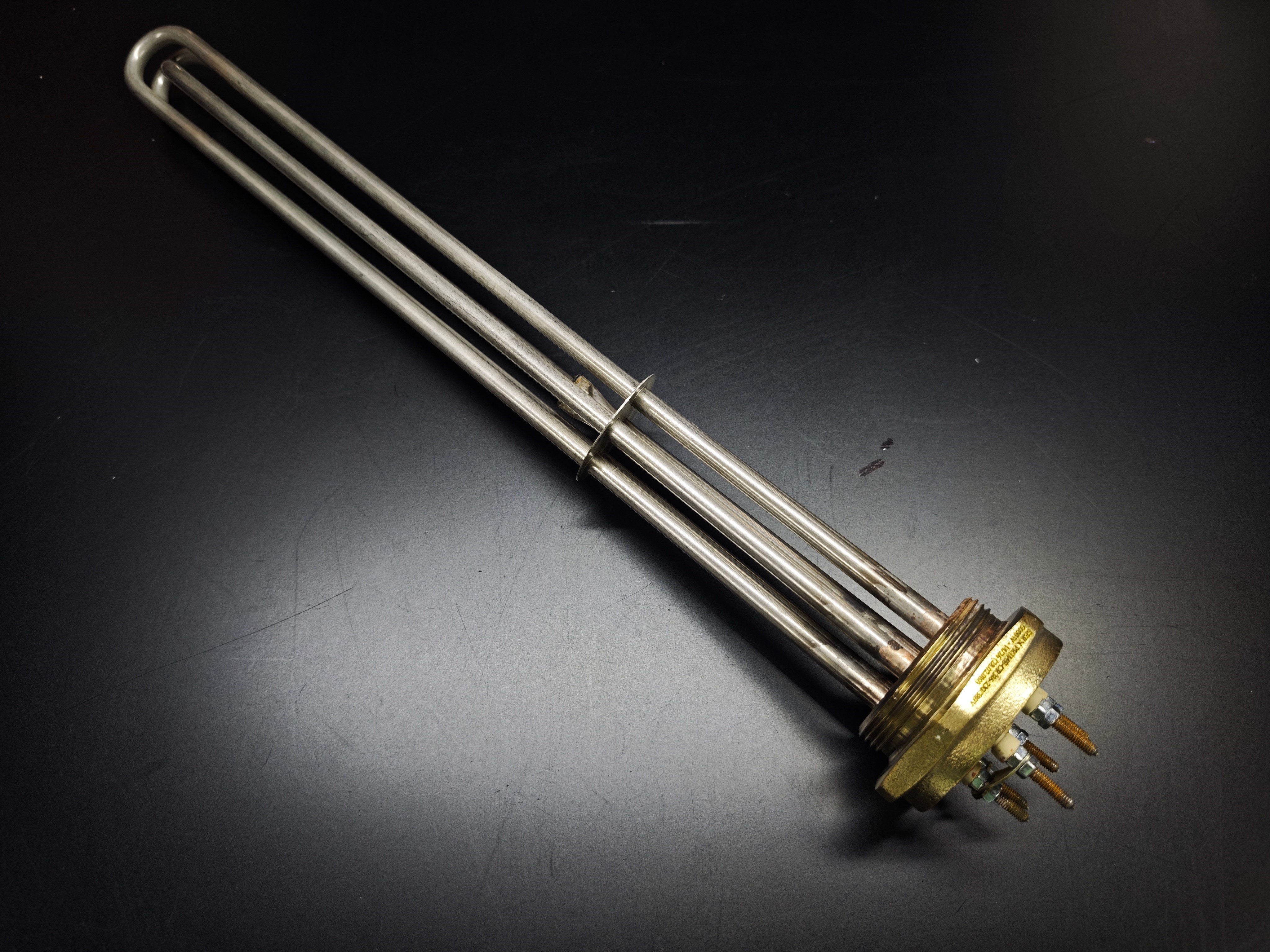

SERN PRIME 2 Inch Custom Head Immersion Heating Element 230V/380V 6000W 50cm Metric Terminals CR316 (28.02.010)

The SERN PRIME 2-inch custom-head immersion heating element is engineered for high-performance liquid heating in industrial boilers, chemical storage tanks, and heavy-duty thermal systems. Delivering a high 6000W (6 kW) output with 230V/380V single and three-phase versatility, it ensures rapid heat-up times and uniform energy transfer across its 50cm immersion depth. Constructed from high-grade CR316 stainless steel, it provides exceptional resistance to aggressive chemical solutions, harsh steam environments, and pitting corrosion. Equipped with a heavy-duty 2-inch custom threaded head and threaded metric screw terminals, it guarantees a leak-proof installation and vibration-resistant electrical wiring.

Technical Specifications

• Brand: SERN PRIME

• Material: CR316 Stainless Steel

• Product Type: Custom Threaded Immersion Heating Element

• Thread / Mounting Size: 2 Inch (2")

• Voltage: 230V / 380V (Single / Three-Phase Compatible)

• Wattage: 6000W (6 kW)

• Immersion Length: 500 mm (50 cm)

• Connection Type: Threaded Metric Screw Terminals

• Applications: Industrial water boilers, chemical processing vessels, steam generators, marine heating systems, and high-capacity liquid heating units

Advantages

• Genuine SERN PRIME high-durability industrial construction

• Premium CR316 stainless steel material offering maximum protection against chemical corrosion and scaling

• High 6000W heating capacity for efficient thermal recovery over a 50cm immersion length

• Custom-engineered 2-inch threaded brass head ensuring a secure, pressure-resistant fit

• Metric threaded screw terminals for stable, long-lasting electrical wiring connections

• Dual 230V/380V voltage compatibility for versatile single-phase or three-phase installation

Disadvantages

• Thread specifications (2 inches) and immersion depth (50cm) must be verified against vessel dimensions before installation

• High power load (6 kW) requires adequate electrical wiring gauge and circuit protection breakers

• Physical tank layout must accommodate the straight 50cm element length
