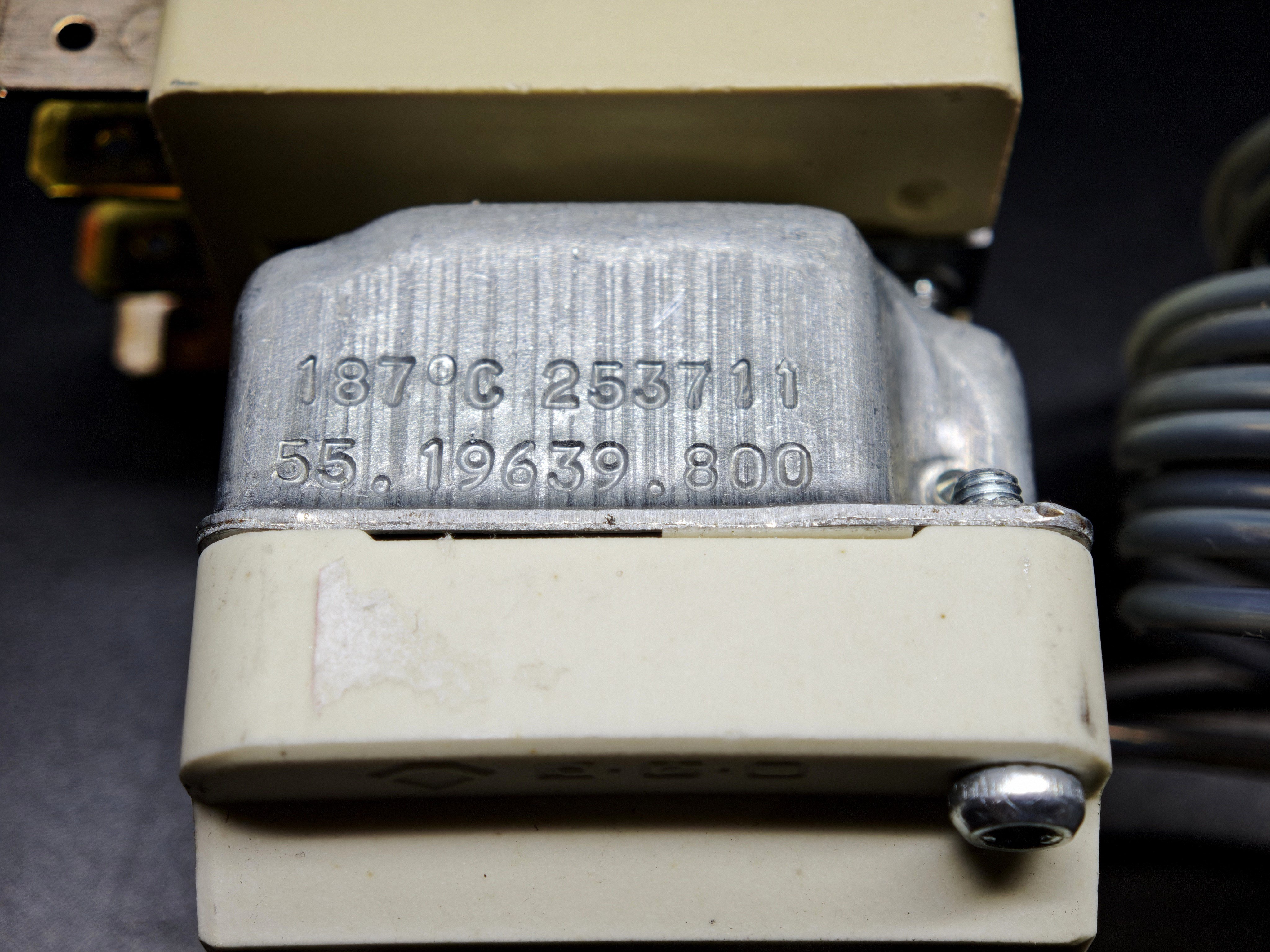

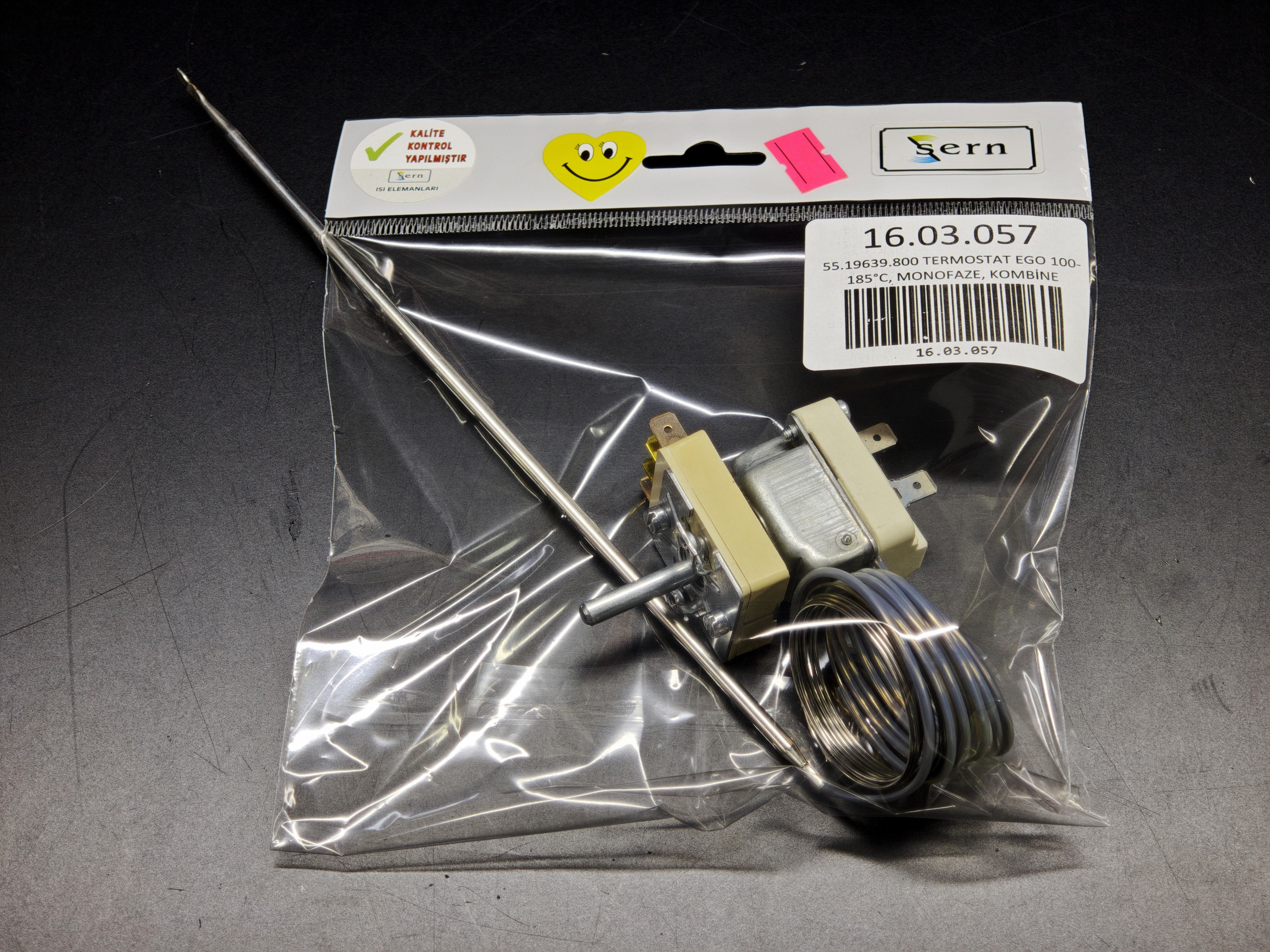

EGO 55.19639.800 Single Phase Combined Thermostat 100-185°C 16A with On/Off Switch (16.03.057)

The EGO 55.19639.800 combined thermostat is designed for precise temperature control in commercial fryers and professional cooking equipment.

With an operating range of approximately 90–185°C, it is suitable for maintaining the required cooking-oil temperature in professional frying applications. The integrated On/Off switch combines temperature regulation and equipment switching in a single control component.

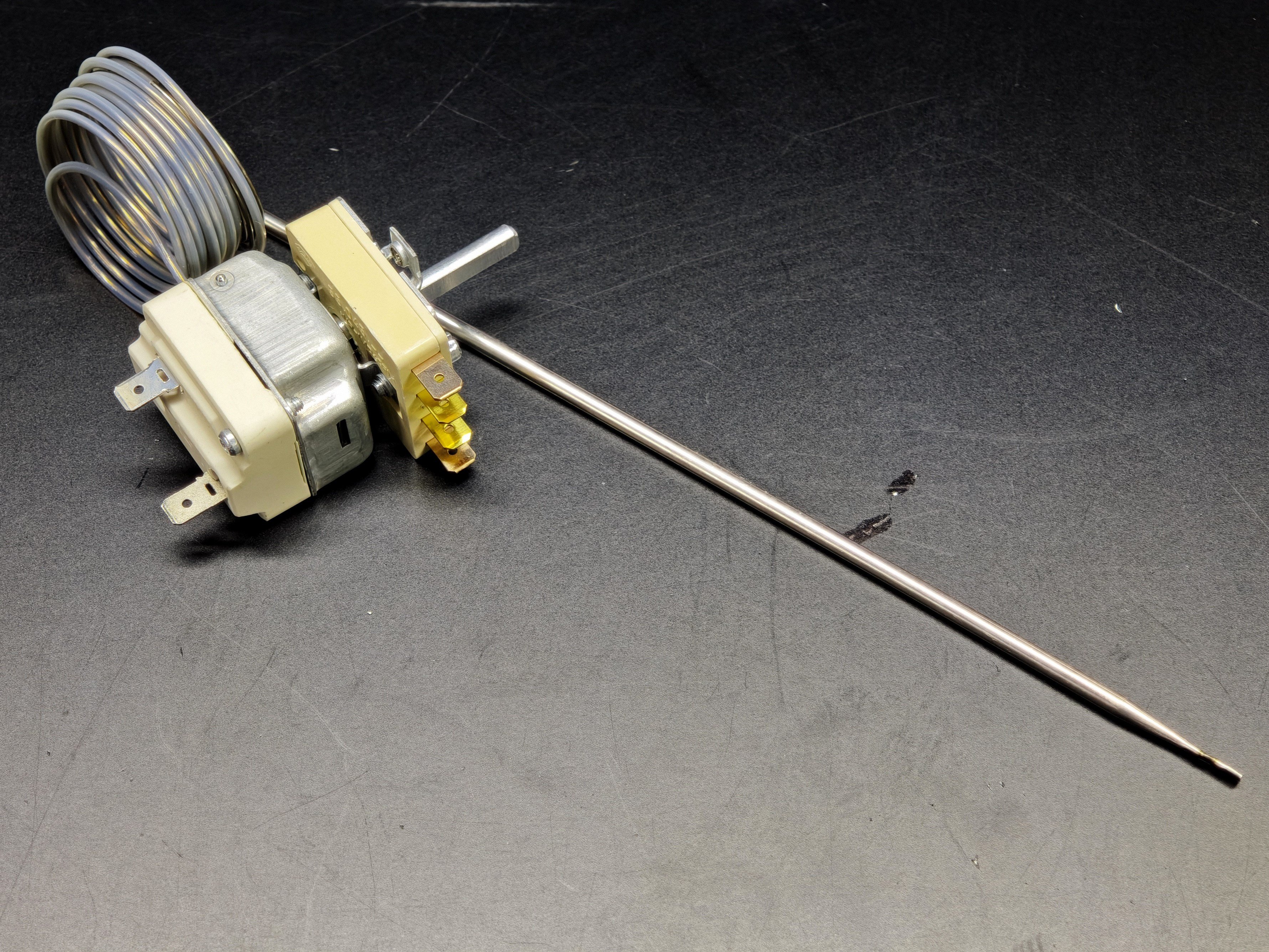

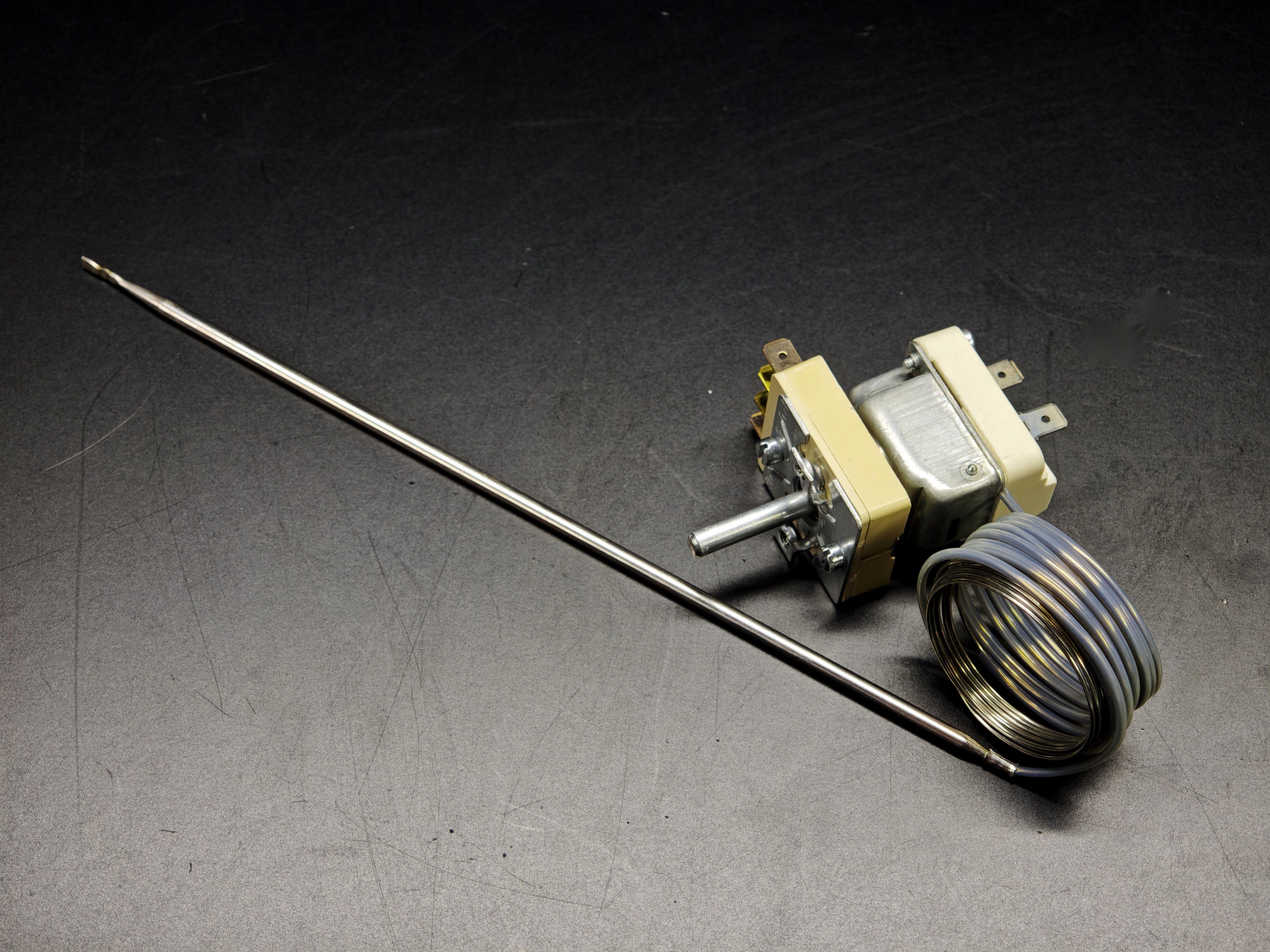

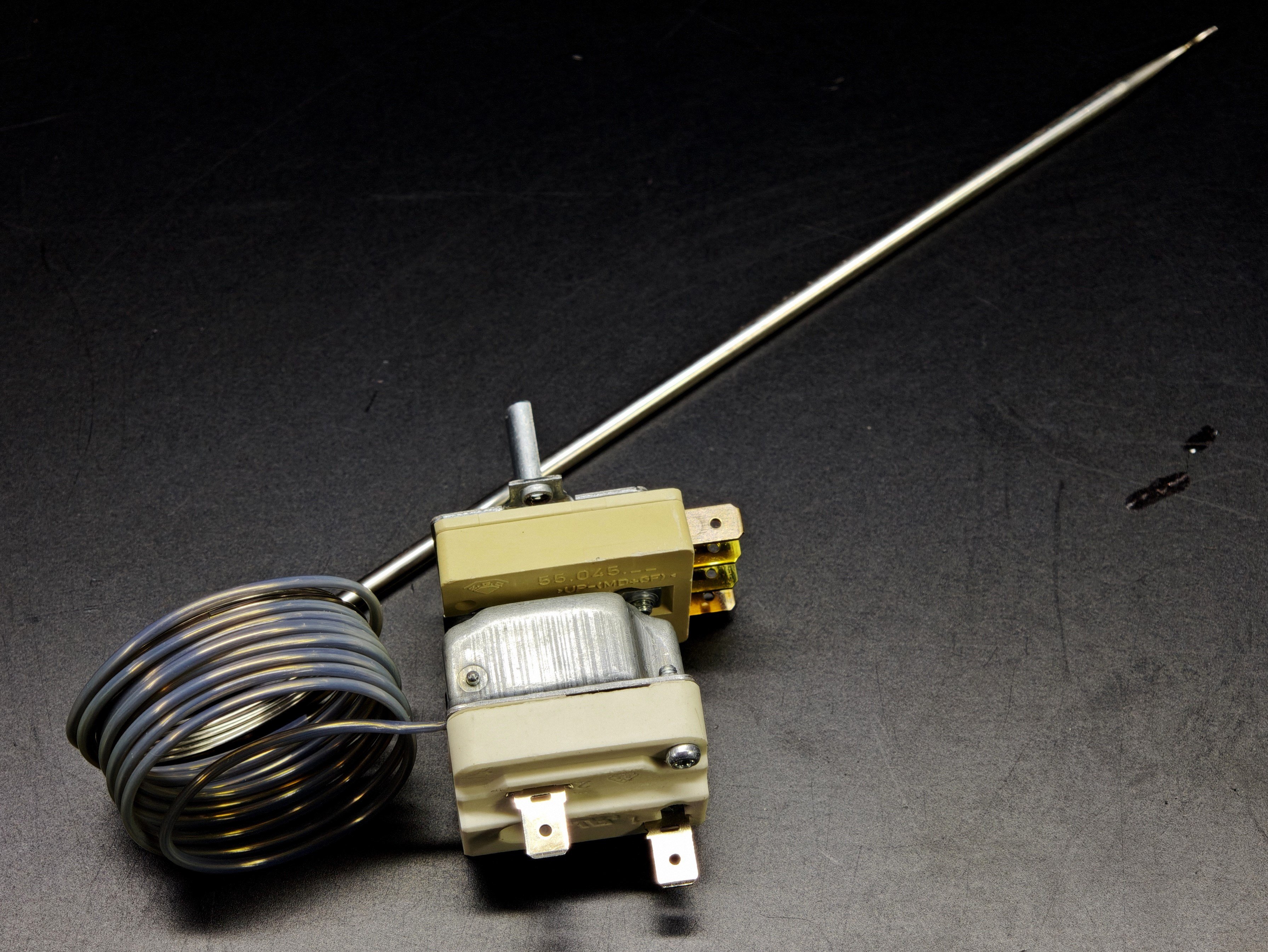

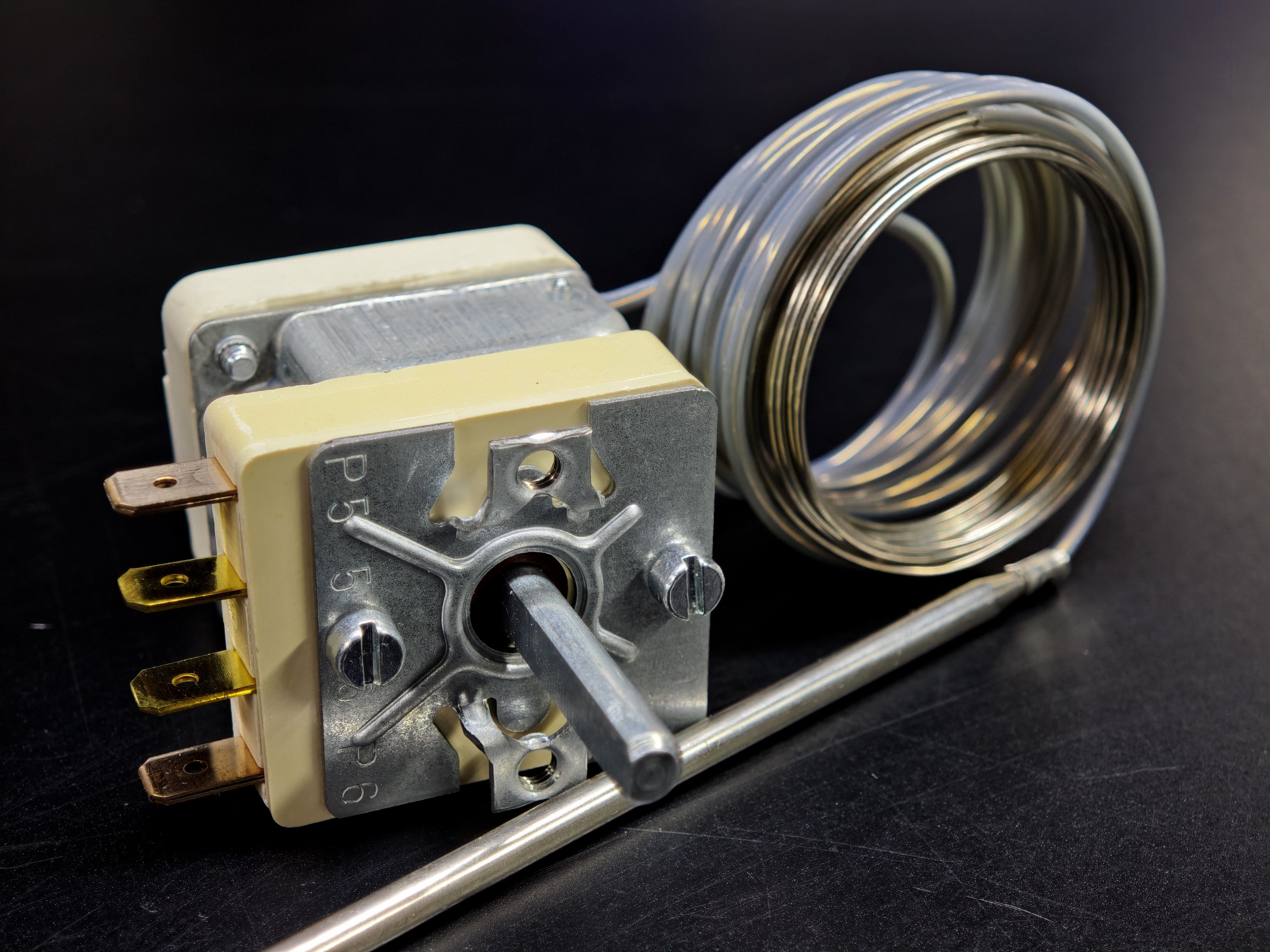

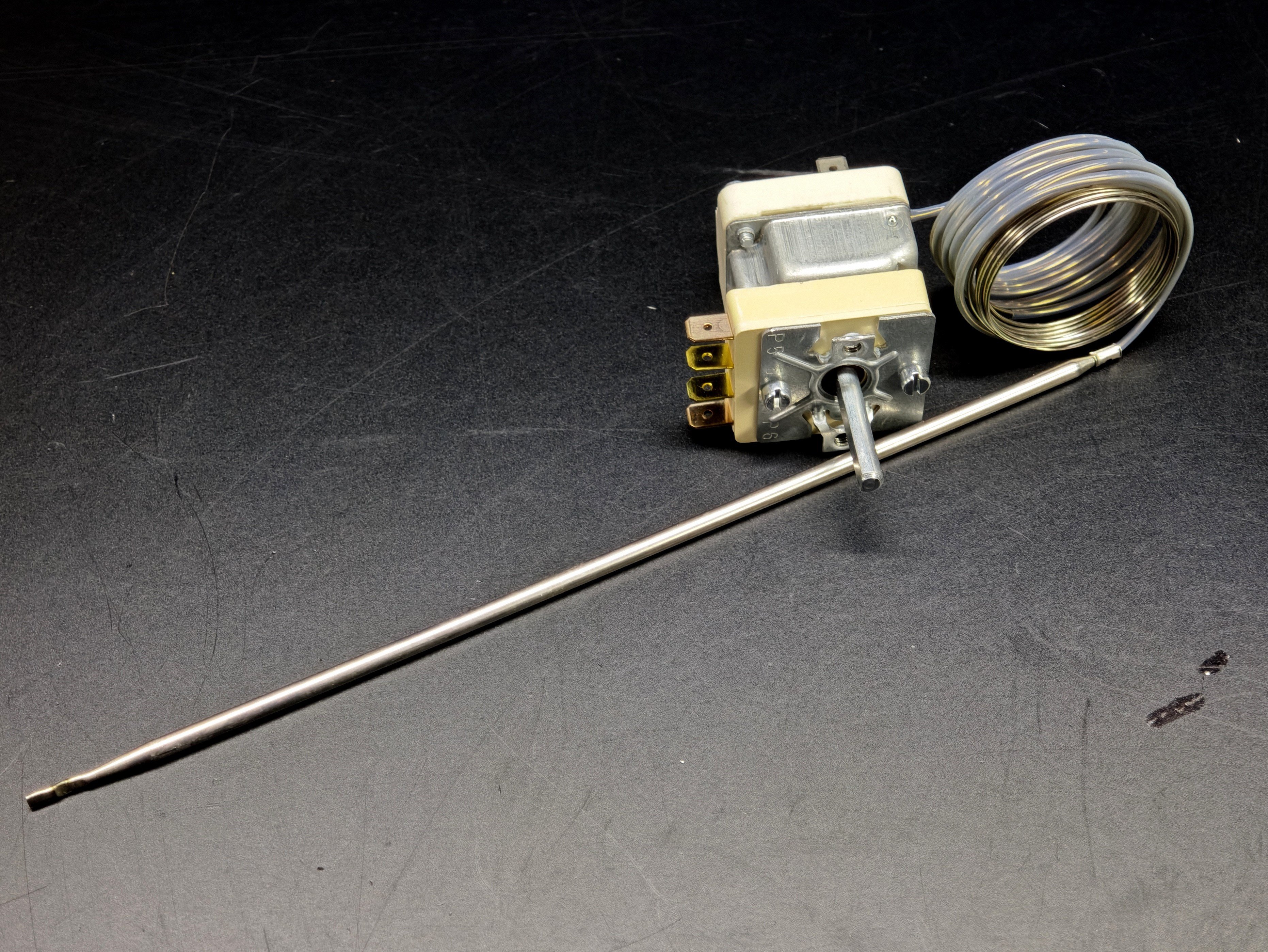

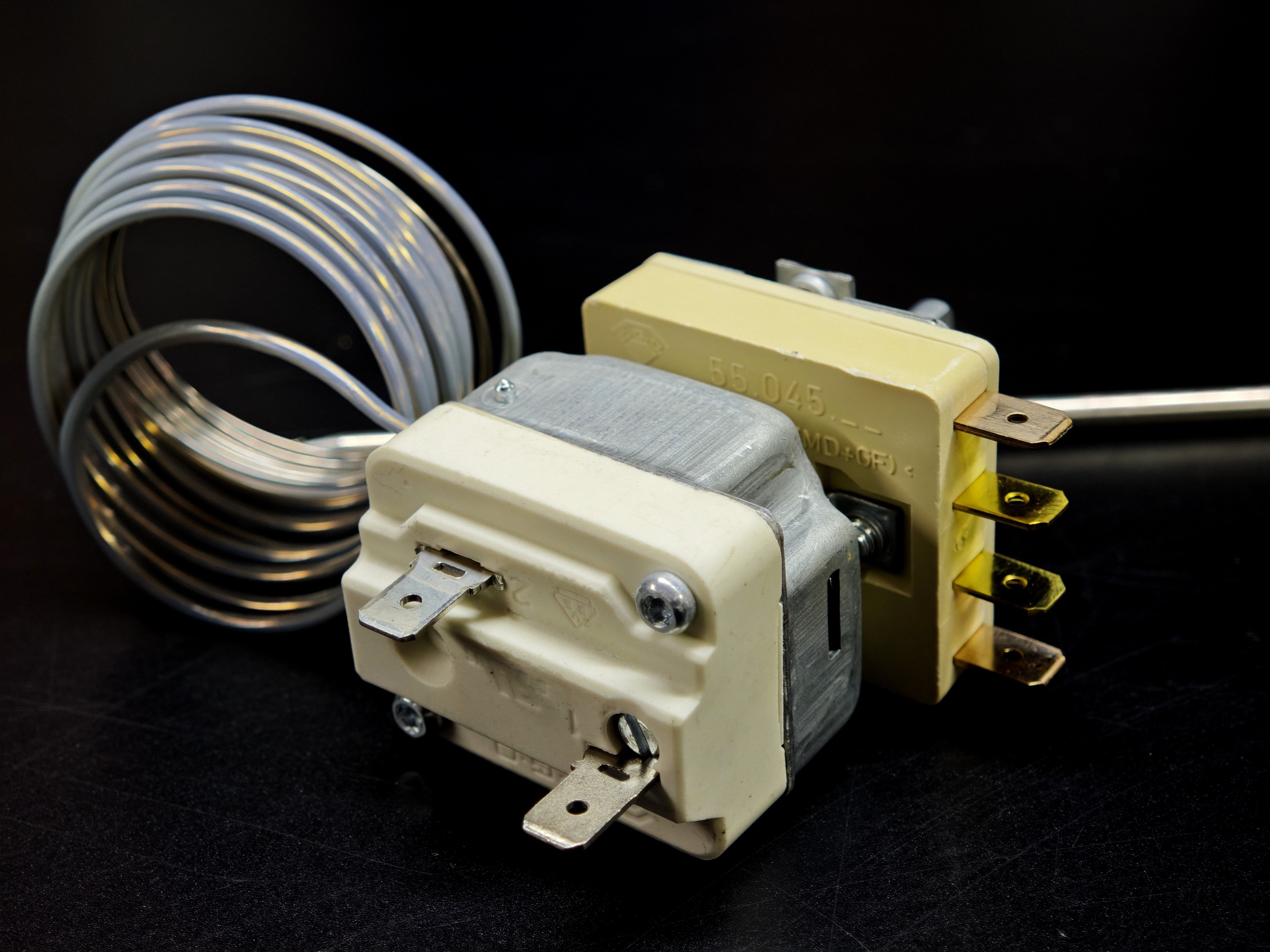

The thermostat features a 2500mm capillary tube and a Ø4 × 229mm sensing probe, providing flexible installation and accurate temperature sensing. It is a single-phase, 1-pole thermostat rated at 16A, with a 23mm shaft and 270° adjustment angle.

Technical Specifications

• Brand: EGO
• Part Number: 55.19639.800
• Product Type: Combined Capillary Thermostat
• Application: Commercial Fryer
• Operating Temperature Range: 90–185°C
• Maximum Temperature: 185°C
• Phase: Single Phase
• Number of Poles: 1 Pole
• Contact Function: 1NO
• Switching Capacity: 16A
• Voltage: 250V AC
• Probe Diameter: Ø4mm
• Probe Length: 229mm
• Capillary Length: 2500mm
• Insulated Capillary Length: 1200mm / 200mm
• Shaft Diameter: Ø6 × 4.6mm
• Shaft Length: 23mm
• Shaft Position: Upper
• Adjustment Angle: 270°
• Integrated Switch: Yes, On/Off operation switch
• Applications: Commercial fryers, professional frying equipment and catering appliances.

Advantages

• Genuine EGO thermostat
• Suitable for professional fryers
• Approximately 90–185°C adjustable range
• Integrated On/Off switch
• Long 2500mm capillary
• Ø4 × 229mm sensing probe
• 16A single-phase switching capacity
• Combines temperature control and equipment switching

Disadvantages

• Compatibility should be checked against the original thermostat.
• Designed primarily for specific commercial frying applications.
• Probe and capillary dimensions should be verified before installation.
