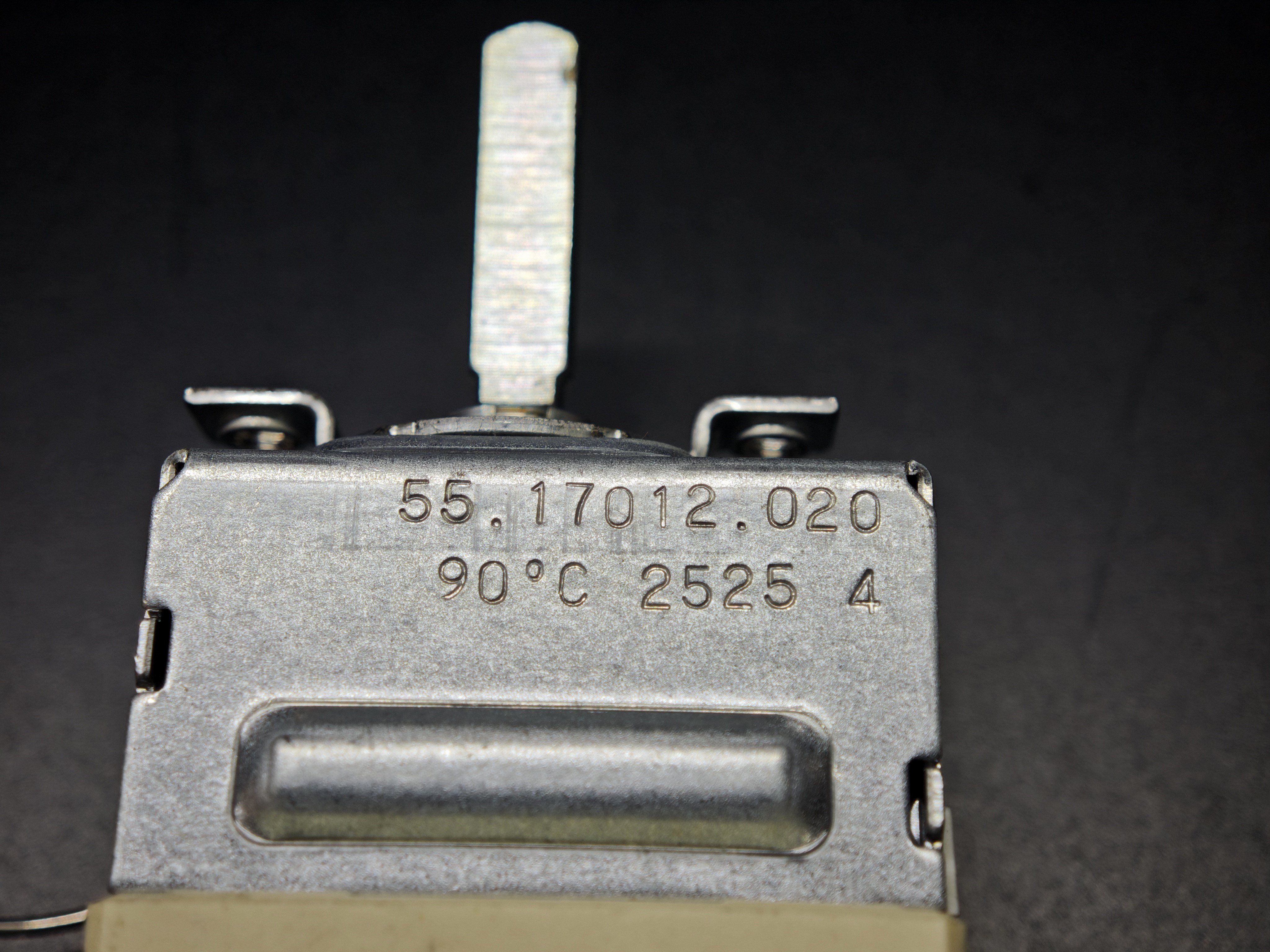

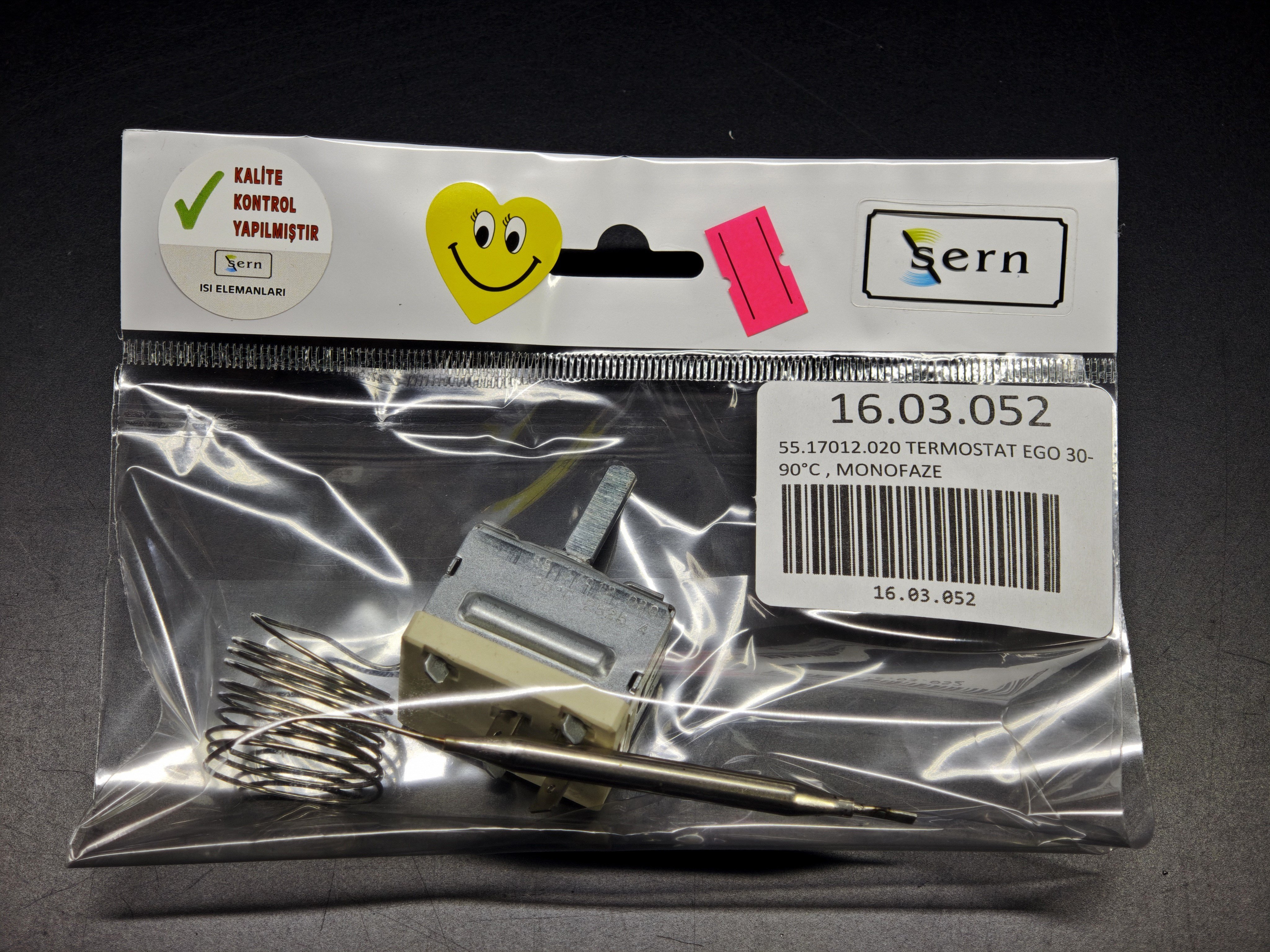

EGO 55.17012.020 Single Phase Thermostat 30-90°C 16A (16.03.052)

EGO 55.17012.020 Single Phase Thermostat 30-90°C 16A


Compare
Write a comment
Questions (0) and Answers (0)

The EGO 55.17012.020 thermostat is designed for reliable temperature regulation in commercial catering equipment, bain marie units, water boilers, and professional heating appliances.

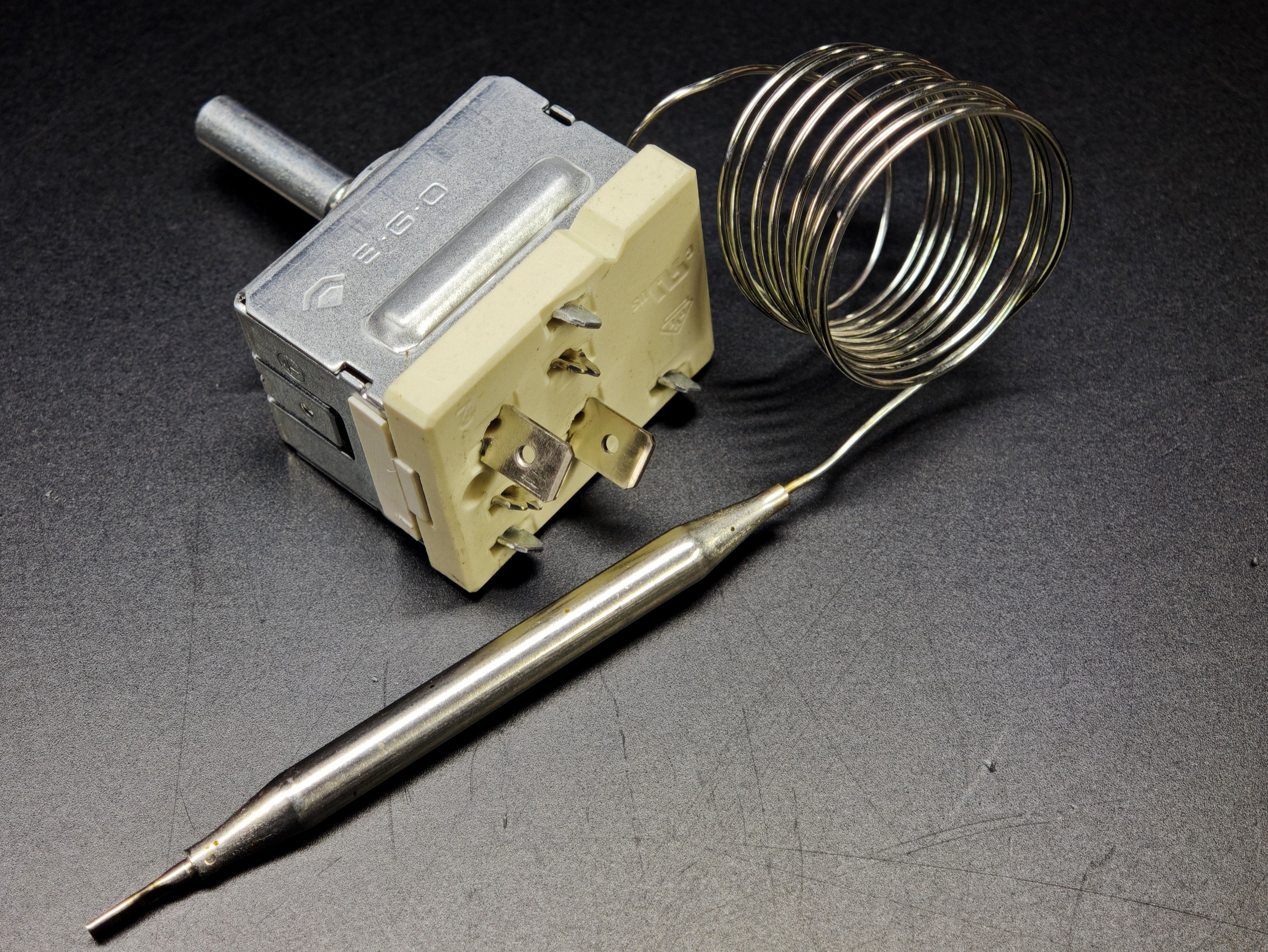

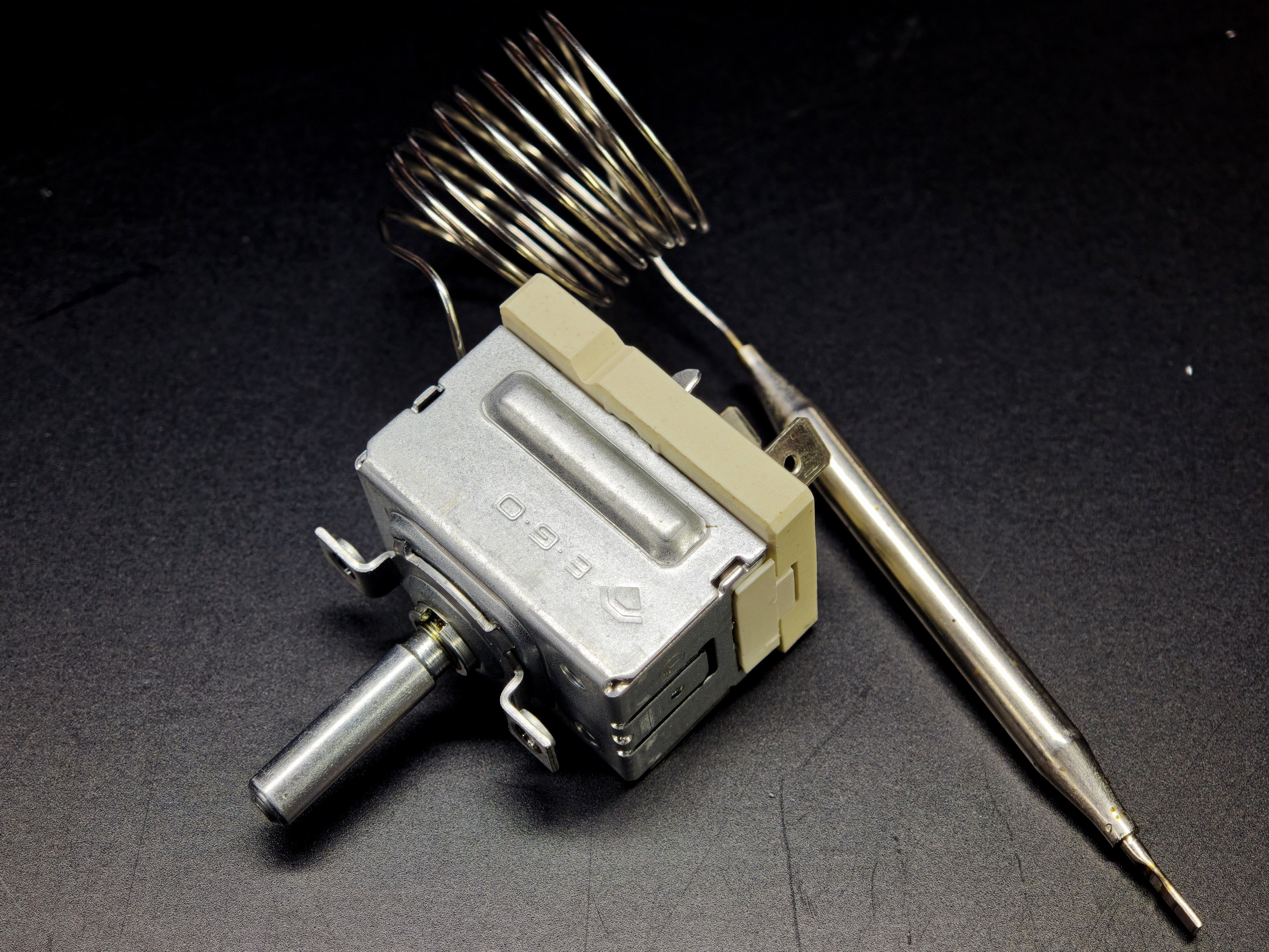

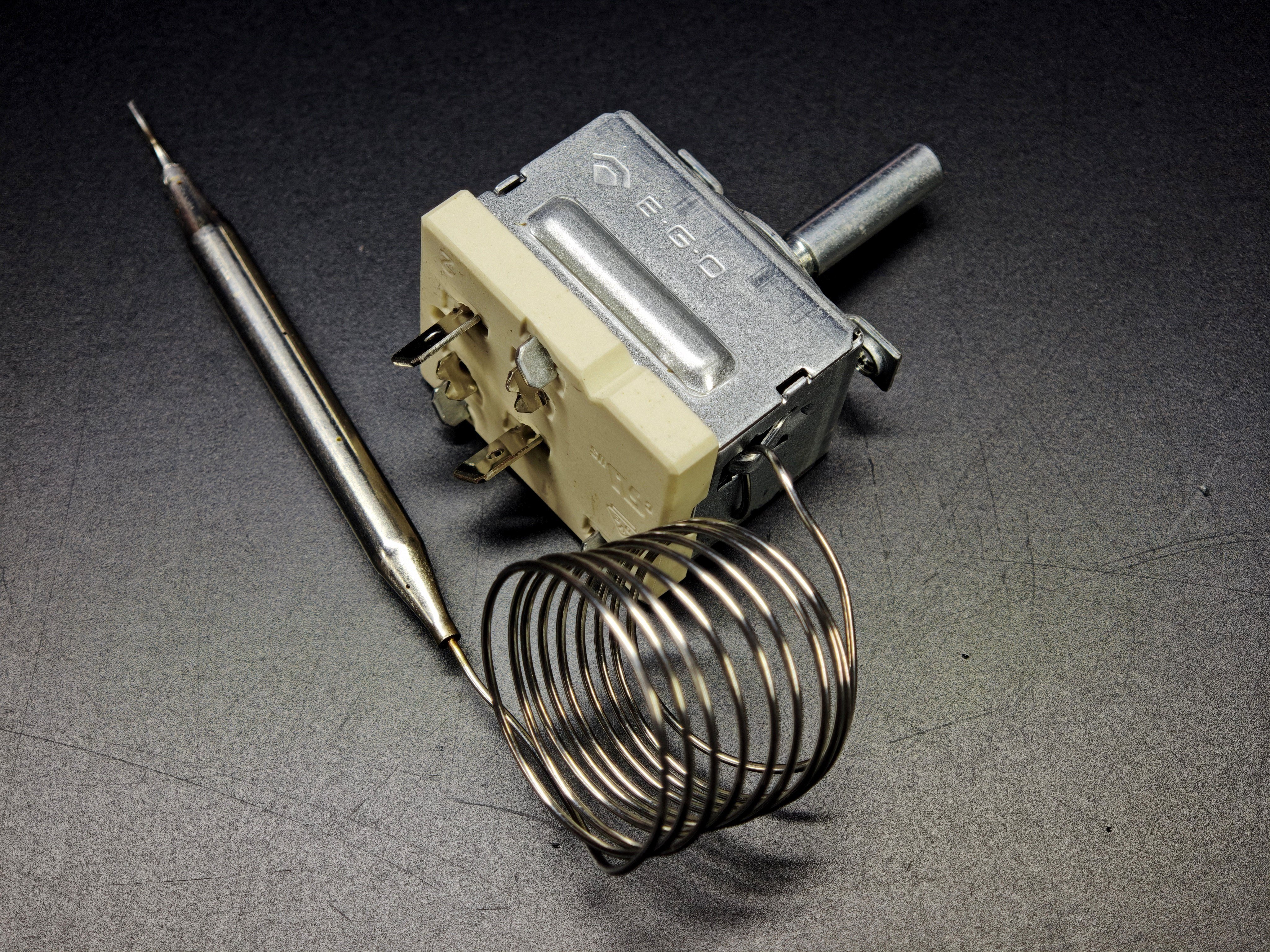

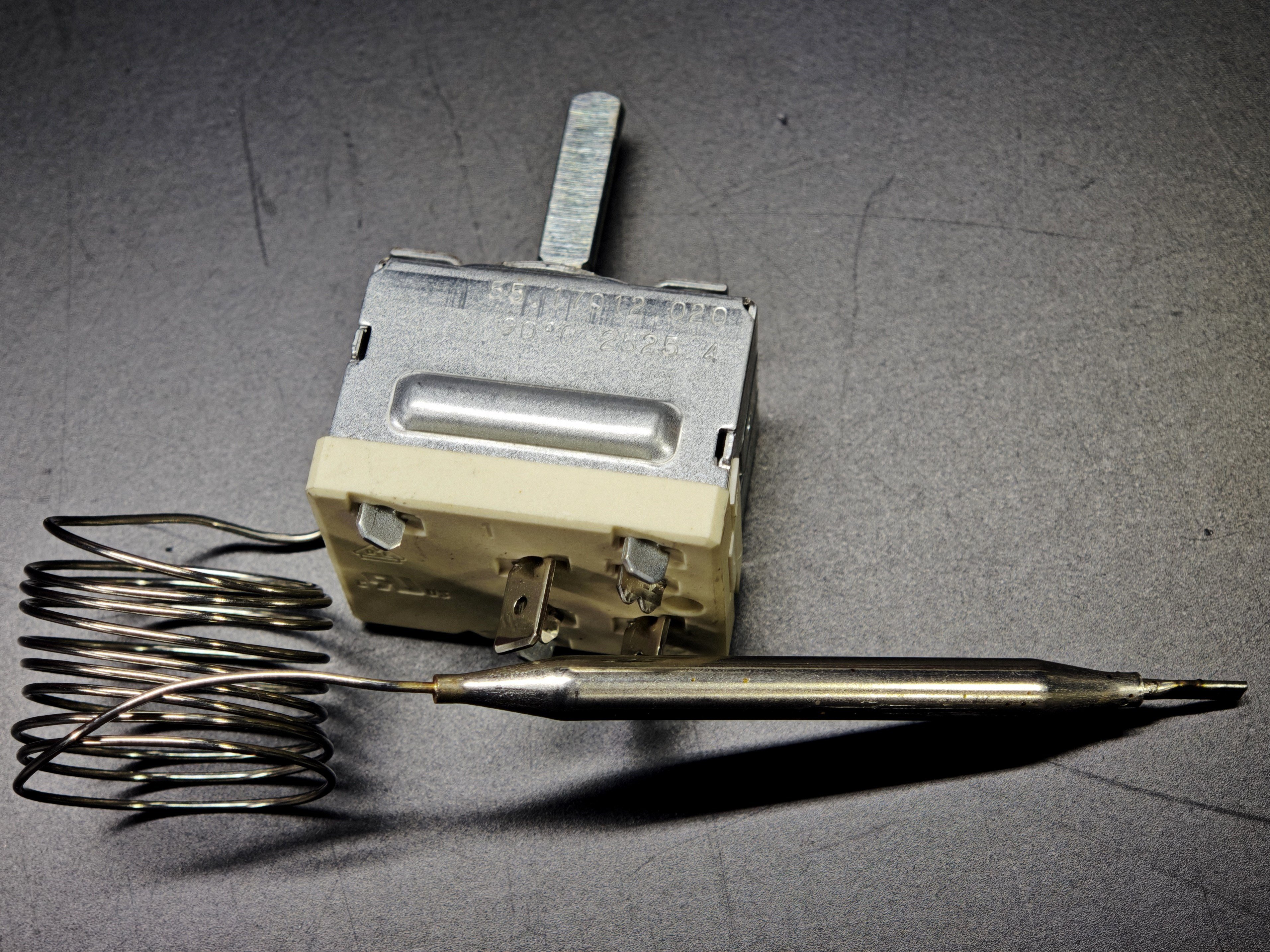

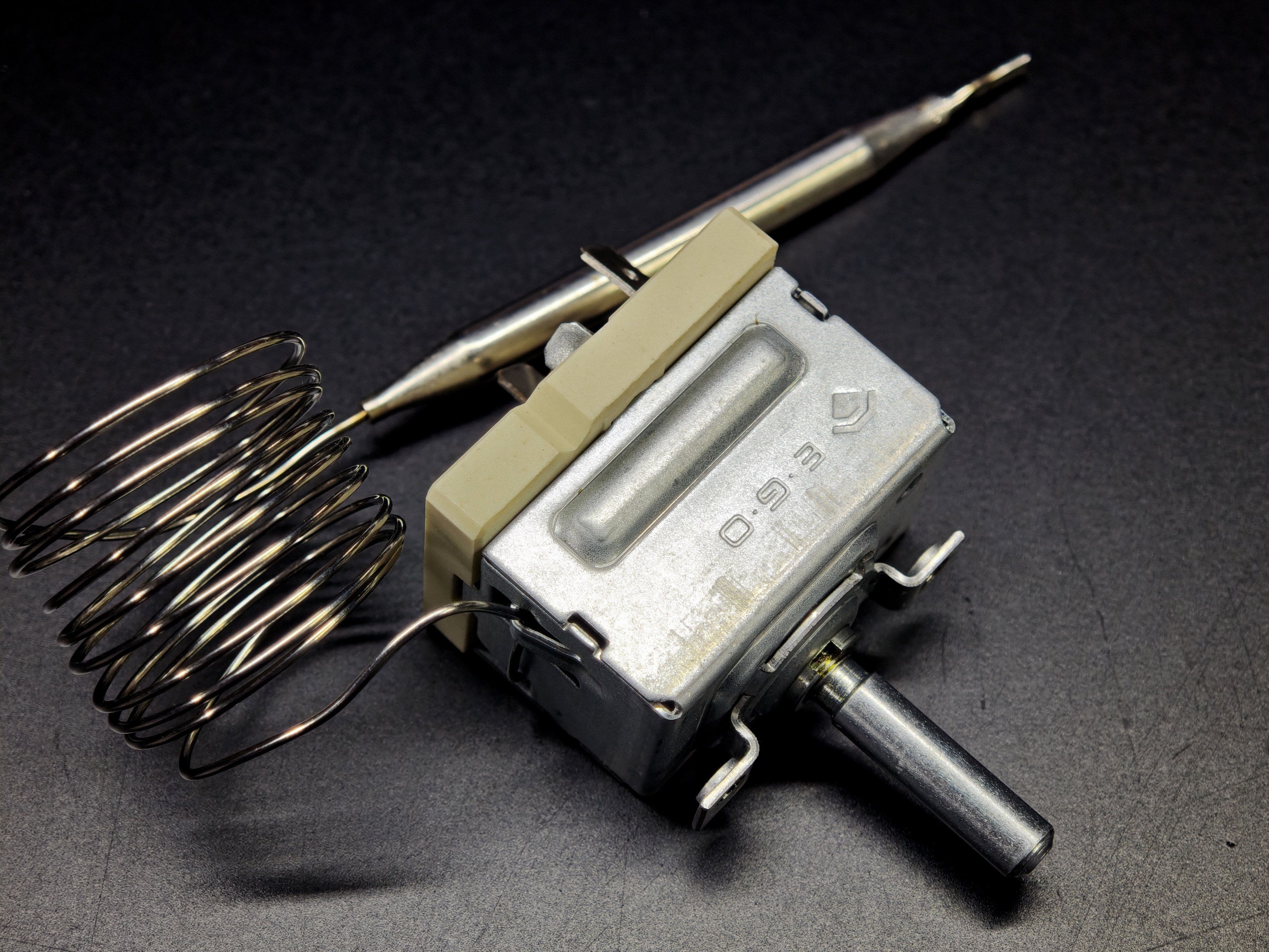

With an adjustable temperature range of 30–90°C, it provides precise control of operating temperature. The 1-pole 1NO contact configuration and 16A rating make it suitable for switching heating circuits in professional equipment. Its Ø6 × 94 mm sensing probe and 840 mm capillary tube provide accurate temperature sensing and flexible installation.

Technical Specifications

  • Brand: EGO
  • Part Number: 55.17012.020
  • Product Type: Adjustable Capillary Thermostat
  • Temperature Range: 30–90°C
  • Phase: Single Phase
  • Current Rating: 16A

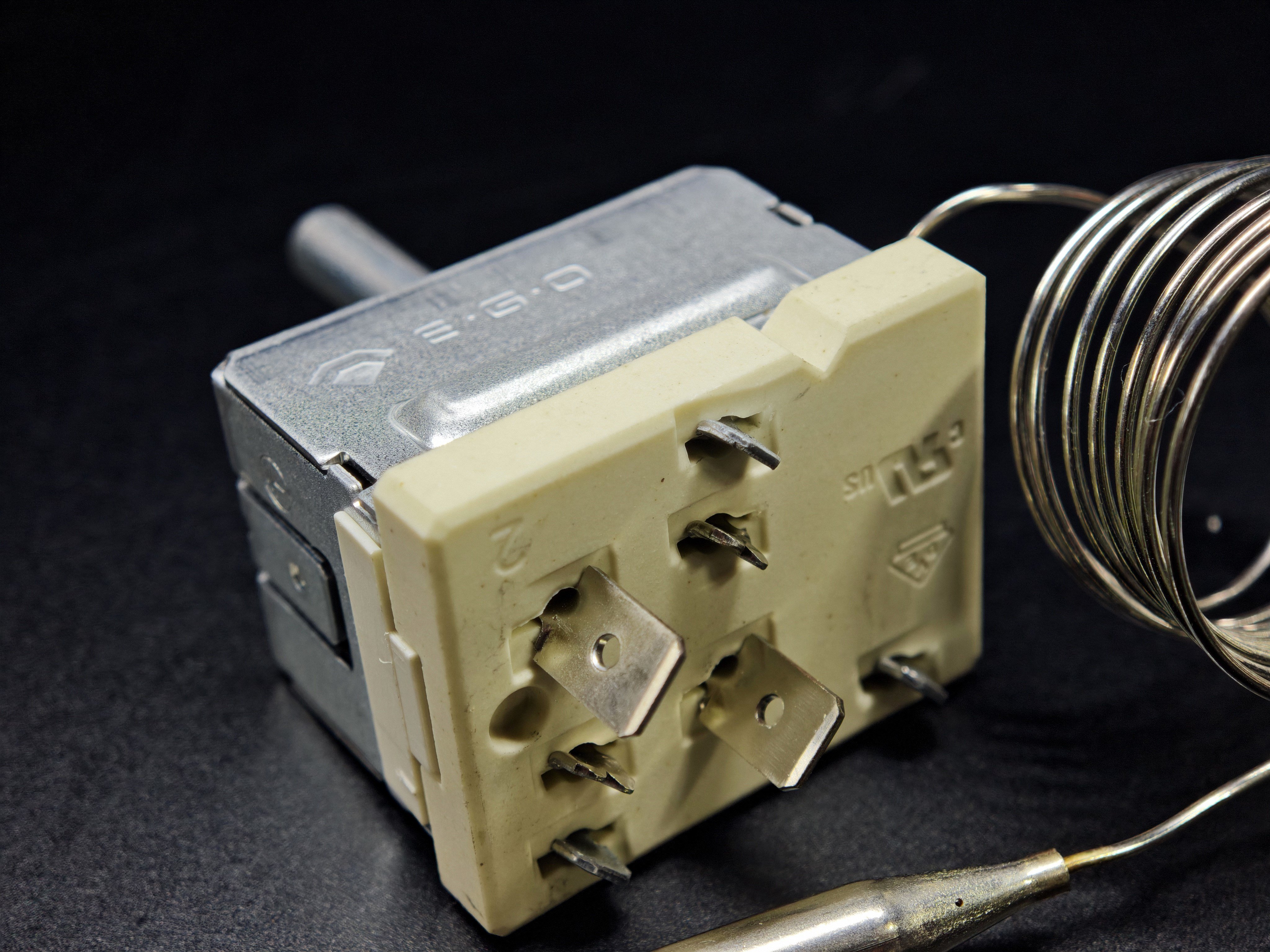

  • Contact Configuration: 1NO
  • Number of Poles: 1 Pole
  • Probe Diameter: Ø6 mm
  • Probe Length: 94 mm
  • Capillary Length: 840 mm
  • Shaft Diameter: Ø6 × 4.6 mm
  • Shaft Length: 23 mm
  • Shaft Position: Upper
  • Rotation Angle: 270°
  • Applications: Bain marie units, water boilers, commercial catering equipment, food warmers and professional heating appliances.

Advantages

  • Genuine EGO thermostat
  • Adjustable 30–90°C temperature range
  • 16A switching capacity
  • Single-phase operation
  • Ø6 × 94 mm sensing probe
  • 840 mm capillary tube
  • Suitable for commercial heating equipment
  • Reliable mechanical temperature control

Disadvantages

  • Compatibility should be checked before installation
  • Designed for specific electrical switching configurations
  • Professional installation is recommended
