The EGO 55.13222.010 thermostat is designed for accurate temperature regulation in commercial catering equipment, water boilers, dishwashers, and professional heating appliances.
With an adjustable operating range of 30–110°C, it provides reliable temperature control for applications requiring stable thermal regulation. The 1-pole changeover contact (1CO) and 16A switching capacity allow the thermostat to control suitable heating circuits effectively.

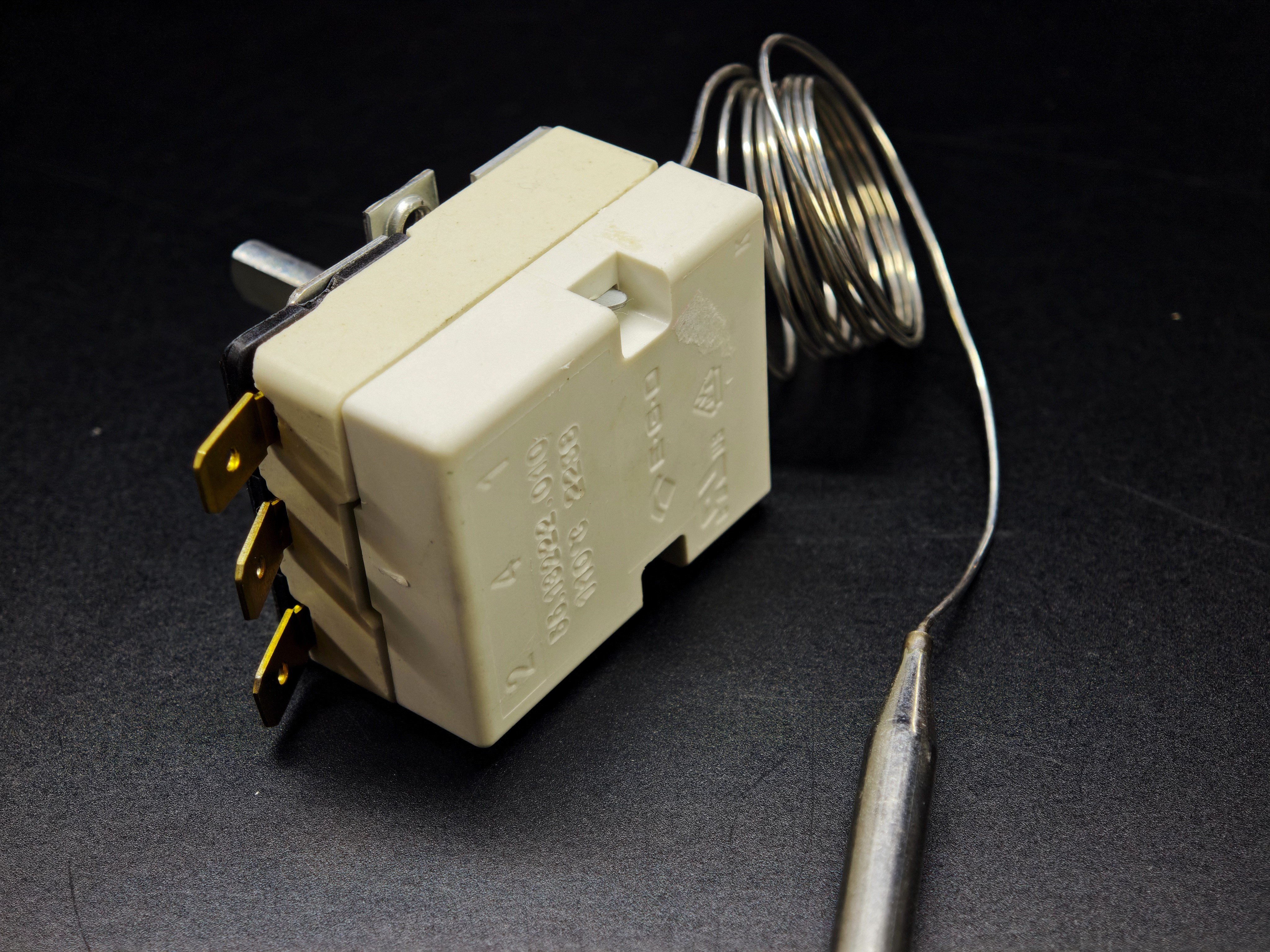

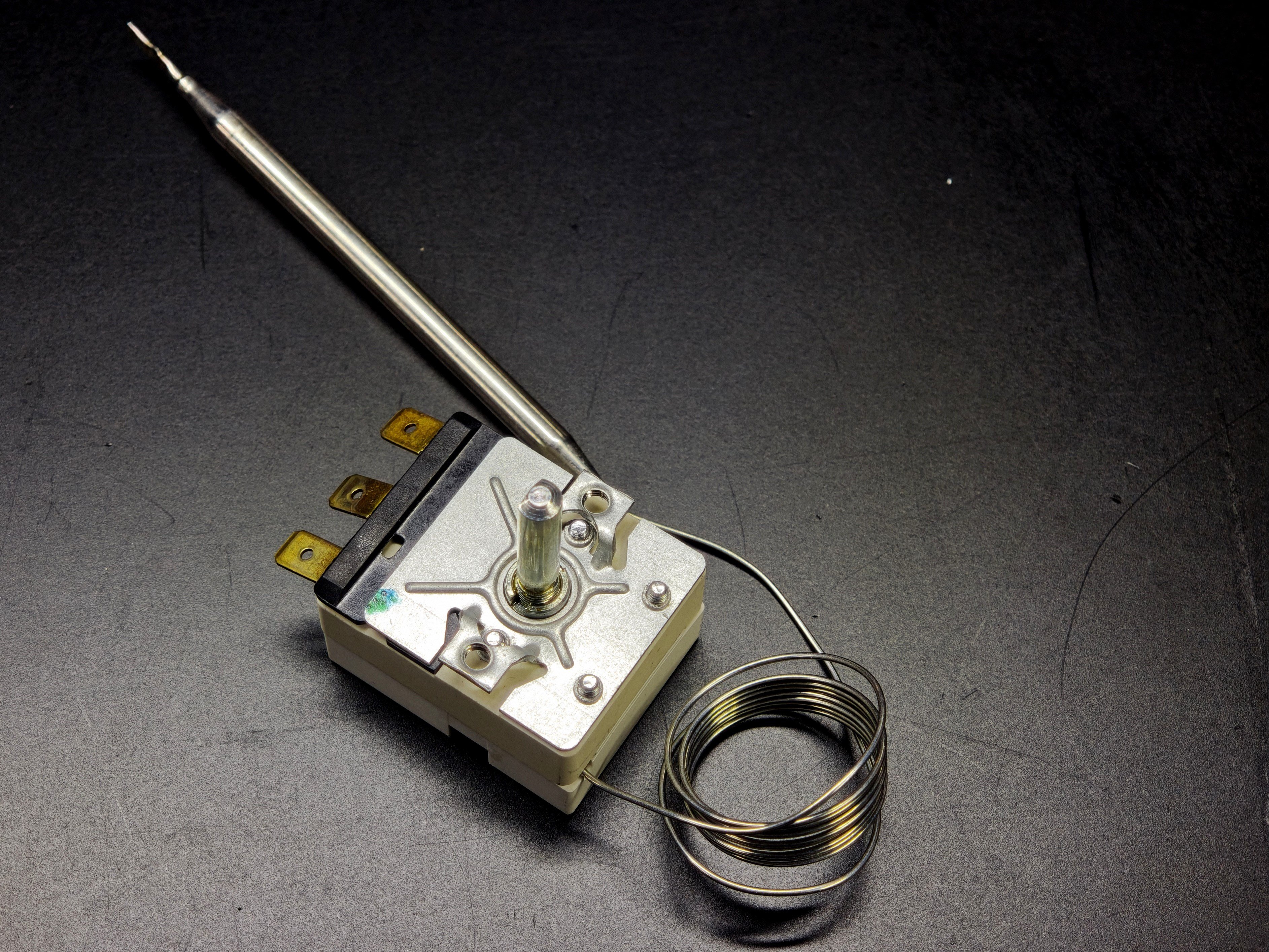

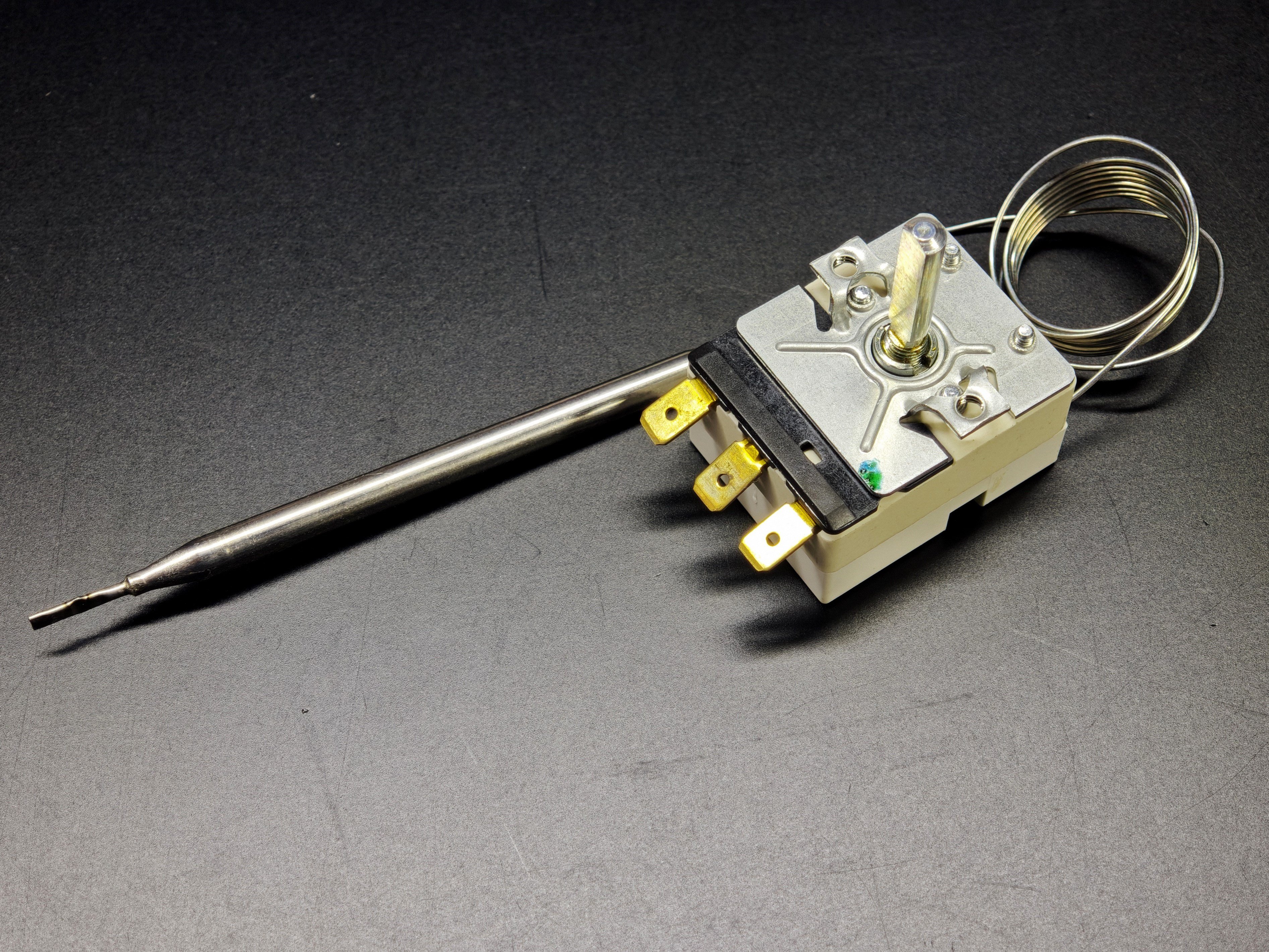

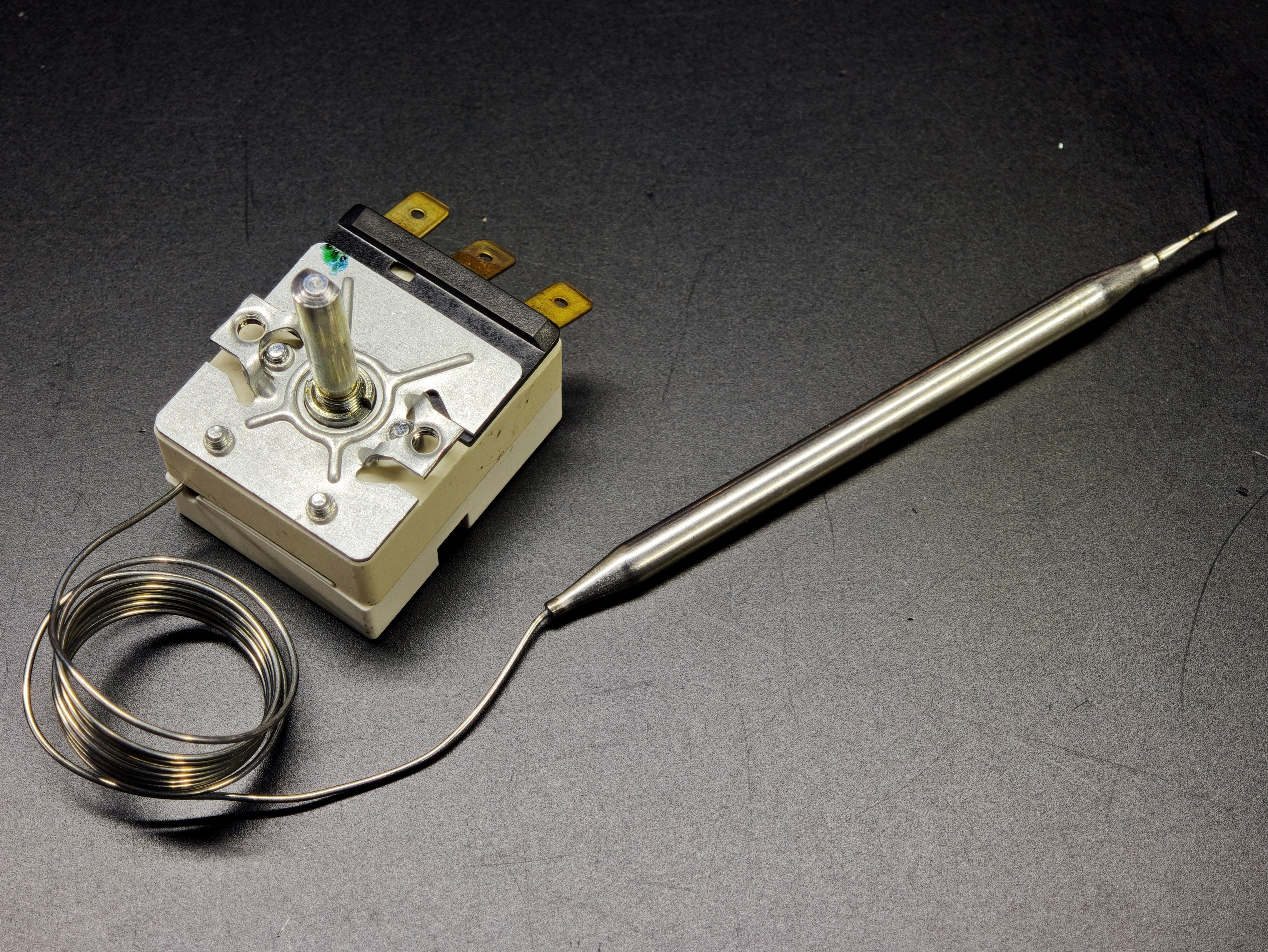

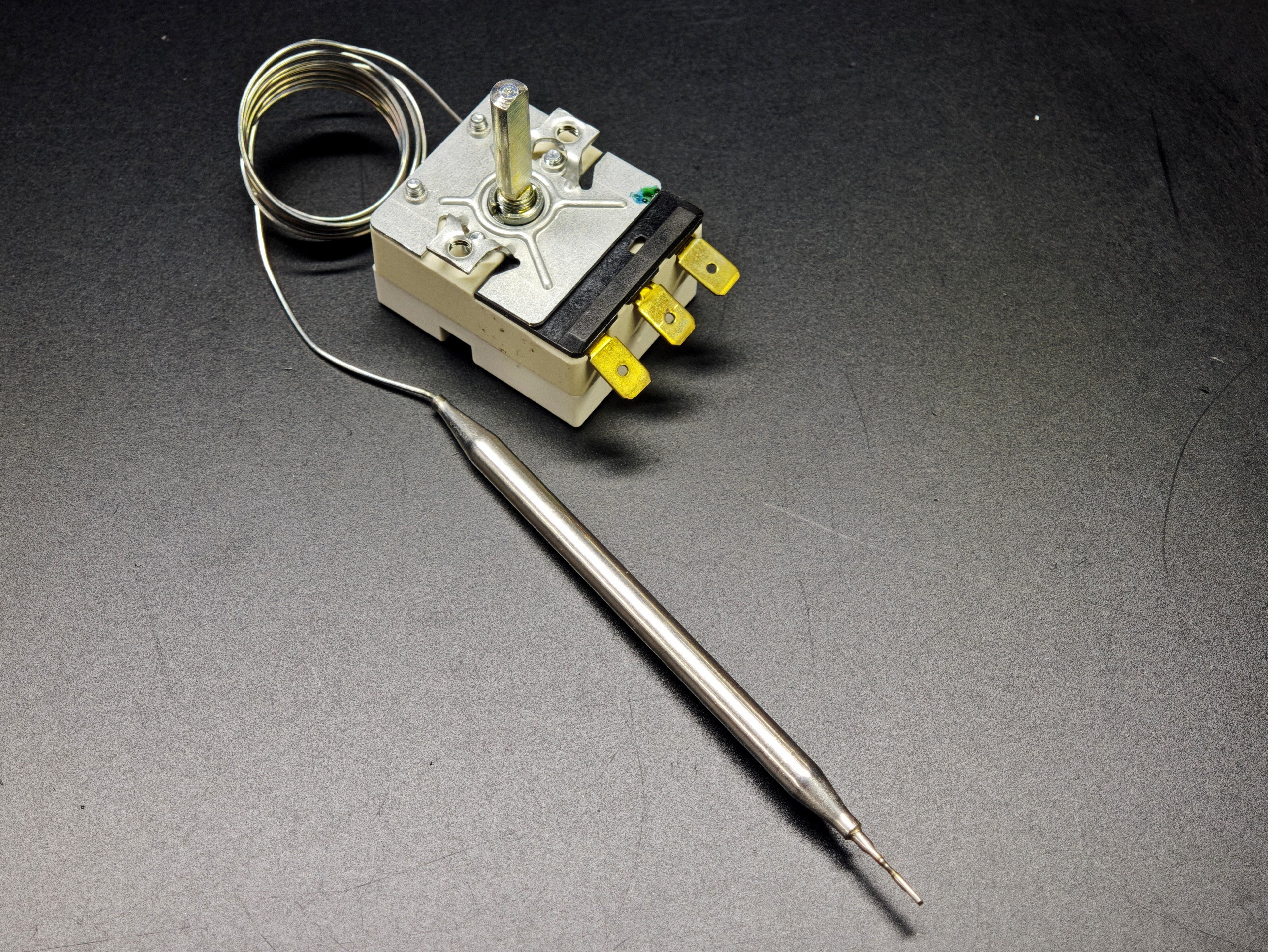

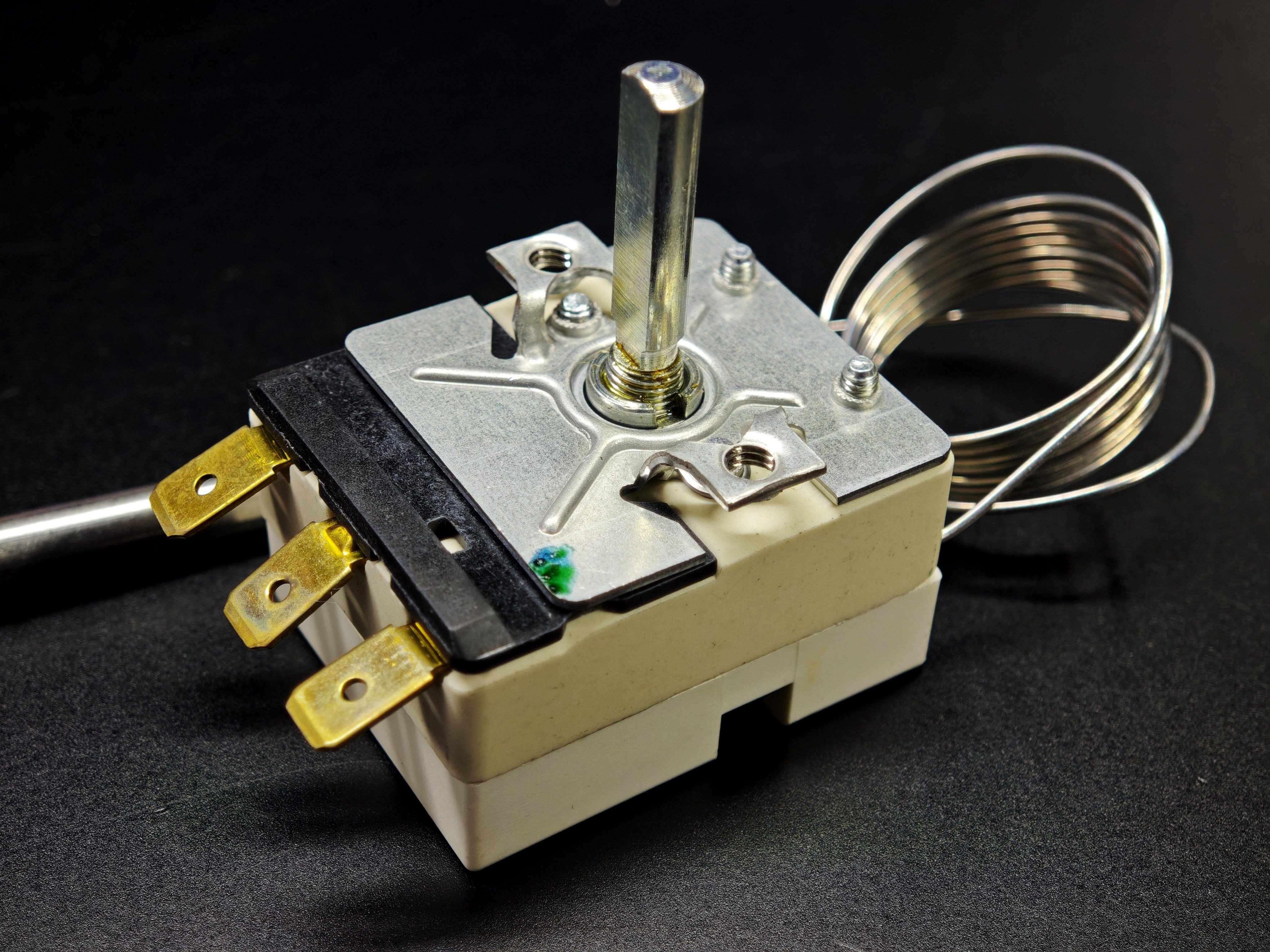

The thermostat features a Ø6 × 113 mm sensing probe and an 870 mm capillary tube, providing accurate temperature sensing and flexible installation in commercial equipment. The upper-positioned shaft and 270° rotation angle allow convenient temperature adjustment.
Technical Specifications
- Brand: EGO

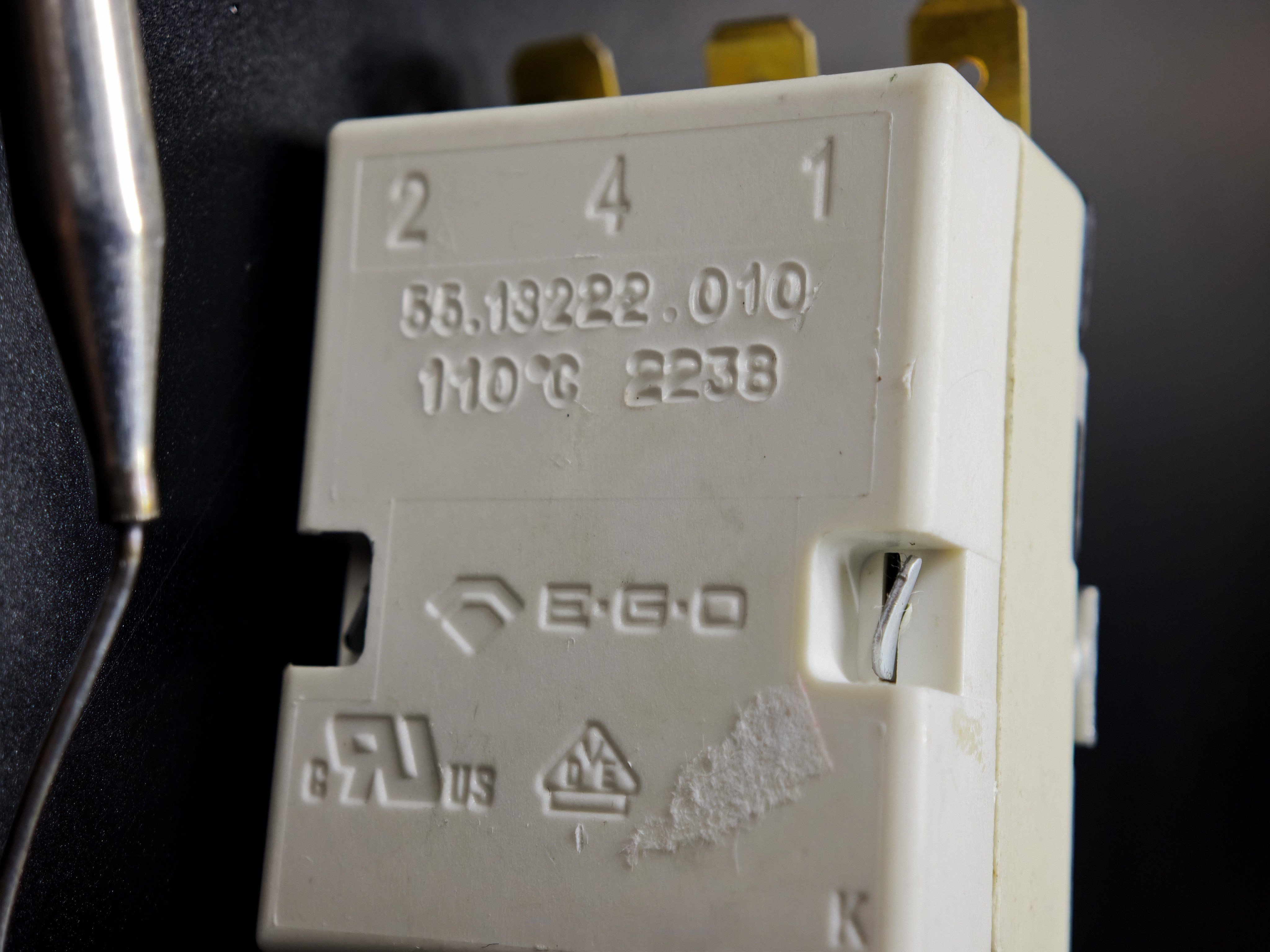

- Part Number: 55.13222.010
- Product Type: Adjustable Capillary Thermostat
- Temperature Range: 30–110°C
- Maximum Temperature: 110°C
- Phase: Single Phase
- Number of Poles: 1 Pole
- Contact Function: 1CO Changeover Contact
- Switching Capacity: 16A
- Probe Diameter: Ø6 mm
- Probe Length: 113 mm
- Capillary Length: 870 mm
- Shaft Length: 23 mm
- Shaft Position: Upper
- Rotation Angle: 270°
- Series: EGO 55.13
- Applications: Commercial dishwashers, water boilers, catering equipment, heating appliances and professional kitchen equipment.
Advantages
- Genuine EGO thermostat
- Adjustable 30–110°C temperature range
- 16A switching capacity
- Single-phase operation
- 1CO changeover contact
- Ø6 × 113 mm sensing probe
- 870 mm capillary tube
- 270° adjustment angle
- Suitable for commercial and professional equipment
Disadvantages
- Compatibility should be checked before installation
- Contact configuration must match the original thermostat
- Professional installation is recommended
