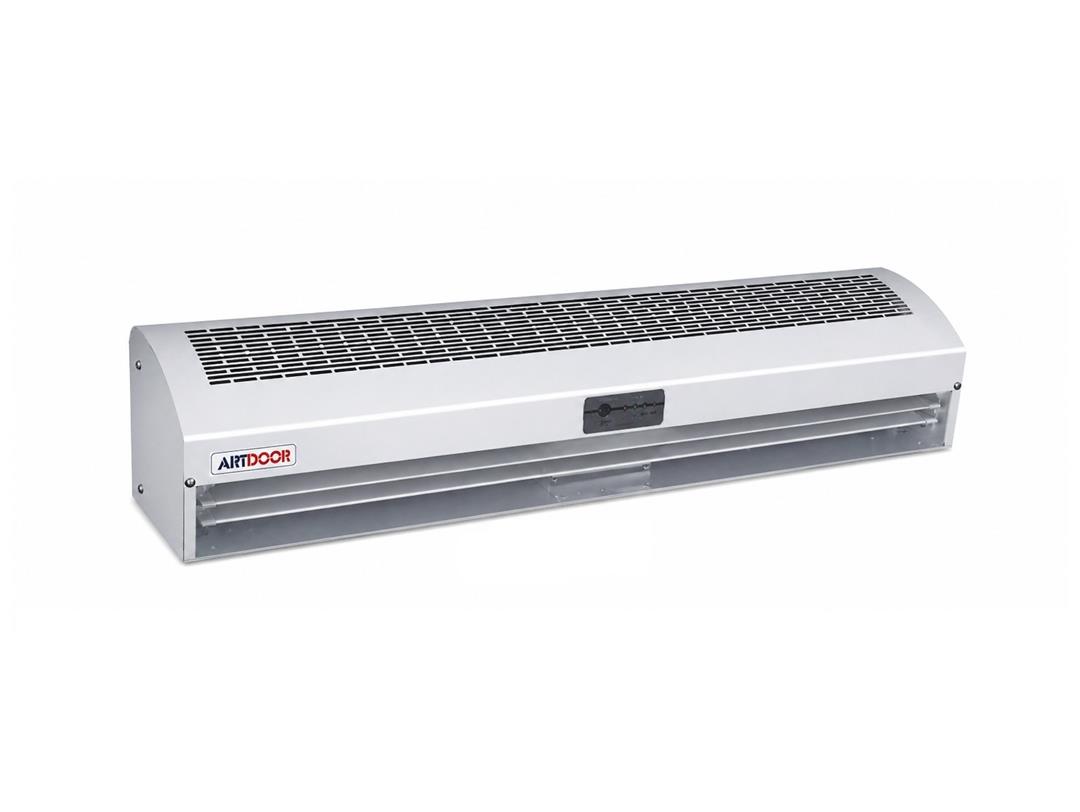

90CM 230V Artdoor FM-3509H/Y Air Curtain Remote Controlled Heaterless Door Air Barrier
The Artdoor FM-3509H/Y air curtain (90CM, heaterless) is designed for efficient separation of indoor and outdoor environments in commercial entrances.
Its heaterless system uses ambient air to create a strong air barrier, helping maintain indoor temperature while reducing energy loss.
Equipped with a remote control, it allows easy adjustment of fan speed and operation modes for flexible use.
The unit delivers high-speed airflow, effectively blocking dust, insects, and external air from entering indoor spaces.
With its 90CM compact design, it is ideal for shops, cafés, offices, and similar entry points.
Technical Specifications
- Brand: Artdoor
- Model: FM-3509H/Y
- Product Type: Air Curtain (Heaterless)
- Width: 90 cm
- Voltage: 220–240V
- Power Consumption: ~110–160W
- Air Volume: 1100 – 1400 m³/h
- Air Speed: 9 – 11 m/s
- Control: Remote Control
- Noise Level: ≤57 dB
- Installation: Wall mounted (above door)
- Application: Commercial entrances, shops, offices
Advantages & Disadvantages
Advantages
- Energy-efficient heaterless operation
- Strong airflow barrier
- Easy remote control usage
- Reduces heating and cooling loss
- Prevents dust and insects
Disadvantages
- No heating function
- Performance depends on installation height
- Requires proper positioning
