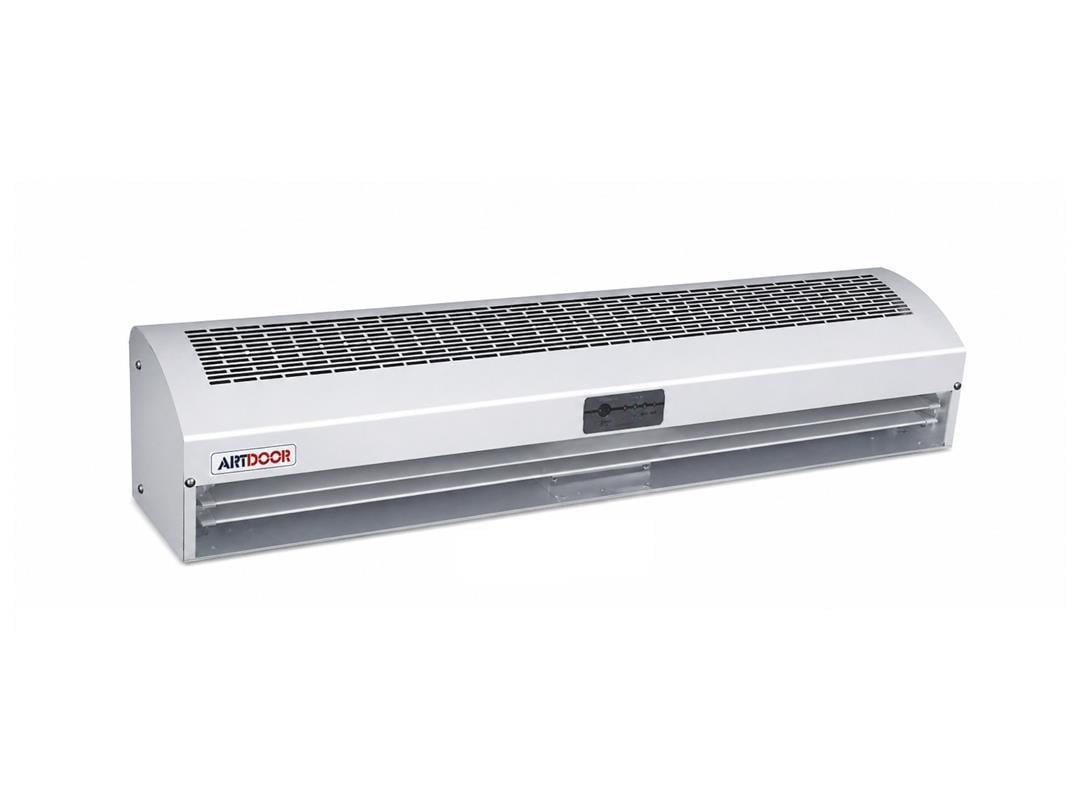

200CM 230V Artdoor FM-3520H/Y Air Curtain Remote Controlled Heaterless Door Air Barrier
The Artdoor FM-3520H/Y air curtain (200CM, heaterless) is engineered for extra-wide entrances requiring maximum air separation and strong airflow performance.
Its heaterless system creates a powerful air barrier using ambient air, helping maintain indoor climate while reducing energy loss.
With a remote control interface, users can easily manage fan speed and operating modes for optimal performance.
The unit delivers high-volume airflow, effectively blocking dust, insects, and external air from entering indoor environments.
Its 200CM width makes it ideal for very large doorways in industrial facilities, warehouses, and commercial spaces.
Technical Specifications
- Brand: Artdoor
- Model: FM-3520H/Y
- Product Type: Air Curtain (Heaterless)
- Width: 200 cm
- Voltage: 220–240V
- Power Consumption: ~220–320W
- Air Volume: 2200 – 2800 m³/h
- Air Speed: 10 – 14 m/s
- Control: Remote Control
- Noise Level: ≤66 dB
- Installation: Wall mounted (above door)
- Application: Industrial entrances, warehouses, large commercial doors
Advantages & Disadvantages
Advantages
- Maximum coverage for very wide entrances
- Strong and consistent airflow barrier
- Energy-efficient heaterless operation
- Remote control convenience
- Reduces heat and cooling loss
Disadvantages
- No heating function
- Requires correct installation height
- Higher power consumption due to size
